100M Ethernet Surge Protection Device -BS RJ45 24V

The 100M Ethernet Surge Protection Device BS RJ45 24V is designed to safeguard 100M network equipment from disruptions caused by surge voltages. It features an RJ45 interface with protection across all four twisted pairs. Built to comply with IEC 61643-21, EN 61643-21, and GB 18801.21 standards, it ensures reliable and standardized surge protection.

Type

BS RJ45 24V
Features

1. For protecting computer data transmission system, network system and so on.
2. Good discharge capacity, low voltage protection level.
3. Quick response, high transmission speed, low signal attenuation.
4. Metallic housing RJ45 connection, easy for installation.
5. With DIN rail installation.
6. 10M/100M Data Rate Compatible.
7. CAT5 and CAT5e Compatible.

Inquiry

Download Datasheet

Mounting on: 35mm DIN rail

100Mbits

RJ45 Connection

1 Port

5V/24V

The 100M Ethernet Surge Protection Device safeguards your network equipment from voltage spikes, lightning strikes, and electrical surges. Ideal for 10/100Mbps Ethernet connections, this device ensures stable data transmission and extends the lifespan of sensitive network hardware. It features RJ45 interfaces, plug-and-play installation, and high-speed signal integrity without impacting performance.

Features

1. 100M Ethernet Support: Protects 10/100 Mbps LAN connections.
2. RJ45 Interface: Designed for Ethernet data lines with PoE compatibility.
3. Surge Handling: Withstands transient overvoltage from lightning and switching surges.
4. Low Insertion Loss: Maintains network stability without degrading data speed.
5. Fast Response: Reacts in nanoseconds to protect connected equipment.
6. Compact Design: Easy plug-and-play integration into network systems.
7. Grounding Terminal: Provides safe dissipation of surge energy.
8. Standards Compliance: Meets IEC/EN 61643 protection standards.

Advantages

1. Equipment Protection: Shields routers, switches, and IP devices from damage.
2. Reliable Connectivity: Prevents downtime caused by surges or voltage spikes.
3. Cost Efficiency: Reduces repair and replacement expenses for network gear.
4. Data Security: Preserves stable packet transmission without signal loss.
5. Long-Term Safety: Extends the service life of Ethernet-based equipment.
6. Peace of Mind: Essential for businesses relying on uninterrupted communication.

Applications

1. Data Centers: Protects Ethernet links to servers and switches.
2. Corporate Offices: Safeguards LAN/WAN connections and VoIP systems.
3. CCTV & Security: Protects IP cameras, NVRs, and access systems.
4. Telecommunications: Ensures reliability in base stations and backbone networks.
5. Industrial Networks: Secures PLCs and SCADA systems connected via Ethernet.
6. Outdoor Systems: Protects PoE devices like cameras and Wi-Fi access points.
7. Smart Homes: Guards IoT devices and smart controllers against surges.

Installation

1. Identify the Ethernet Cable: Select the line to be protected (usually the incoming line).
2. Connect Input Port: Plug the external cable into the “IN” port of the device.
3. Connect Output Port: Connect the “OUT” port to the router, switch, or IP device.
4. Grounding: Attach the grounding terminal securely to the building’s earth system.
5. Power & Test: Restore power, check link status, and verify normal 100M connectivity.
6. Inspect Regularly: Replace unit if the status indicator shows failure (if equipped).

Technical Data

Product Showcase

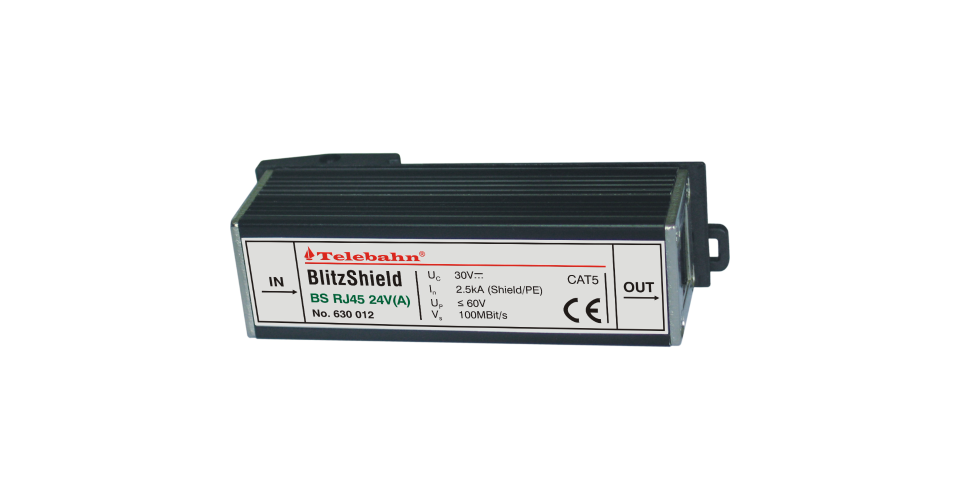

BS RJ45 24V (A)

BS RJ45 24V (A) Circuit

BS RJ45 24V (A) Dimension

BS RJ45 5V (B)

BS RJ45 24V (B) Circuit

BS RJ45 24V (B) Dimension

Start Your Project

We will respond to you within 24 hours after receiving your request email.

3 Years Warranty
Free Customized Design
Welcome OEM and ODM Service
CE RoHS CB KEMA TUV Certificates
Surge Protecetive Device（SPD）Factory
30+ Years Surge Protector SPD Experiences

Type	BS RJ45 5V	BS RJ45 24V
Art.-No.	BS RJ45 5V(A) 630009 / BS RJ45 5V(B) 630010	BS RJ45 24V(A) 630012 / BS RJ45 24V(B) 630013
Application	CAT5 RJ45 Ethernet Surge Protector Devices
Max. data transmission rates [Vs]	100Mbits/s
Connection (input/output)	RJ45 shield socket
Nominal DC voltage [U_N]	5V	24V
Rated voltage (max. continuous d.c. voltage) [Uc]	6V	30V
Rated voltage (max. continuous a.c. voltage) [Uc]	4.2V	21.1V
Lightning impulse current (10/350μs) (SG-PG) [Iimp]	0.5kA	0.5kA
Nominal discharge current (8/20μs) (line-line-PG) [I_n]	0.3kA	0.1kA
Nominal discharge current (8/20μs) (line-line-PG) [I_max]	0.4kA	0.2kA
Nominal discharge current (8/20μs) (shield-PG) [I_n]	2.5kA	2.5kA
Nominal discharge current (8/20μs) (shield-PG)[I_max]	5kA	5kA
Voltage protection level at In (line-line) [U_p]	≤ 35V	≤ 60V
Voltage protection level at In (line-PG) [U_p]	≤ 35V	≤ 60V
Voltage protection level 1kV/us (line-line-PG) [Up]	≤ 13V	≤ 45V
Voltage protection level 1kV/us (Shield-PG) [U_p]	≤ 700V
Bandwidth (line-line) [f_G]	≤ 165MHz
Response time (line-line-PG) [t_A]	≤ 1ns
Response time (Shield-PG) [t_A]	≤ 100ns
Operating temperature range [Tu]	-40°C…+80°C
Pinning	1/2, 3/6, 4/5, 7/8
Mounting on	35mm DIN rail，EN 60715
Number of Ports	1 Port
Degree of Protection	IP 20
Enclosure material	Auminum
Earthing via	Type A:Earthing screw Type B：Outgoing cable 1.5 mm^₂ x 300mm
Shield earthing	Indirectly via integrated spsrk gap
Certification	CE; RoHS;REACH；ISO 9001：2015
Test standards	IEC 61643-21; EN 61643-21; GB 18802.21
Warranty	3 Years
