Buy AC Surge Protective Device - with High-Performance SPD

The AC Surge Protective Device is for protecting electrical systems from high-energy surges such as lightning. It works in a fast manner, with an array of discharge capacitance. It provides consistent performance to ensure the safety of the equipment it is charged with. Intended for home and business applications, this unit complies with safety standards in various countries to provide you with the finest security each time.

Whole House Surge Protector Type 1 -BT BCM 25 RM/4P

BT BCM 25 RM/4P 801034 1. Adopt hermetical GDT technology, high follow current extinguish capacity.
2. For three-phase TNC-S/TN-S system; Total lightning impulse.current limp withstand max. 100kA (10/350us).
3. Extremely low voltage protection level.
4. Double terminals for parallel or series (V-shape) connection.
5. Multifunctional connection for conductor and busbars.
6. Green light indicates functional mode (3* L-PE modules).

AC T1 Surge Protective Device

Din Rail Mounted Surge Protection -BT BCM 25 RM/3+N

BT BCM 25 RM/3+N 801036 1. 10/350μs, 8/20μs sparkgap, Three-phase TT/TN-S(“3+1” circuit) lightning surge protector.
2. Lightning impulse current withstand max.25kA (10/350μs) L-N, max.100kA (10/350μs) N-PE.
3. Adopt hermetical GDT technology, high follow current extinguishing capacity.
4. Extremely low voltage protection level.
5. Double thermals for parallel or series (V-shape) connection.
6. Multifunctional connection for conductors and pure copper busbar.
7. Green light indicates power functional mode (L-N module).

AC T1 Surge Protective Device

Power Surge Protection in House - BT BCM 25 RM

BT BCM 25 RM 801031 1. 10/350μs, 8/20μs sparkgap, single-pole lightning surge arrester. 2. Lightning impulse current withstand max.25kA (10/350μs). 3. Adopt hermetical GDT technology, high follow current extinguishing capacity. 4. Extremely low voltage protection level. 5. Double thermals for parallel or series (V-shape) connection. 6. Multifunctional connection for conductors and pure copper busbar. 7. Green light indicates functional mode.

AC T1 Surge Protective Device

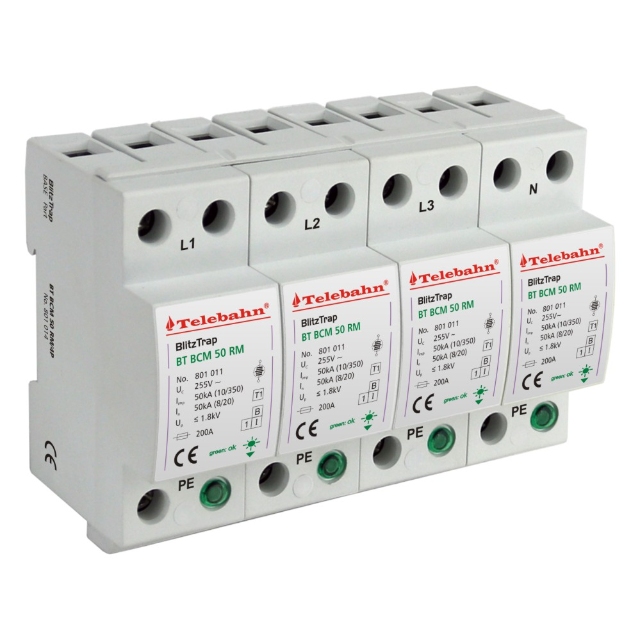

Surge Protection Device for Home -BT BCM 50 RM

BT BCM 50 RM 801011 1. 10/350μs, 8/20μs sparkgap, single-pole lightning surge arrester 2. Lightning impulse current withstand max.50kA (10/350μs) 3. Adopt hermetical GDT technology, high follow current extinguishing capacity 4. Extremely low voltage protection level 5. Double thermals for parallel or series (V-shape) connection 6. Multifunctional connection for conductors and busbar 7. Green light indicates functional mode.

AC T1 Surge Protective Device

AC Surge Protection -BT BCM 25 RM/2+N

BT BCM 25 RM/2+N 801037 1. 10/350μs, 8/20μs sparkgap, two phase surge protector device. 2. Lightning impulse current withstand max.25kA (10/350μs) L-N, max.100kA (10/350μs) N-PE. 3. Adopt hermetical Gas Discharge Tube (GDT) technology, high follow current extinguishing capacity. 4. Extremely low voltage protection level. 5. Double thermals for parallel or series (V-shape) connection. 6. Multifunctional connection for conductors and busbar. 7. Green light indicates power functional mode (2*L-N module).

AC T1 Surge Protective Device

Surge Protector Lighting Arrester -BT BCM 50 RM/1+N

BT BCM 50 RM/1+N 801015

AC T1 Surge Protective Device

Product Range

The Power Supply System SPD offers a variety of surge protection options to fit different needs.

AC SPD Class I and II: For the basic and secondary surge protection.

SPD Boxes: Small parts to assemble a strong protection hub.

Photovoltaic DC SPD: Especially suitable for solar power systems.

Gas-Type AC SPD: New approaches of gas discharge for better surge protection.

Extension SPD: Convenient to operate and carry, a surge protectant.

Wind Turbine SPD: Designed for renewable energy products & services.

IT, Network, and Security SPD: Protects important information and many applications.

The Bottom Line

The AC T1 Surge Protective Device is highly recommended to individuals who are in search of a fast, reliable, and inexpensive surge protective device. It does not matter if you want to protect your house or your working place, having regular maintenance of the systems and the protection of the equipment is more than wise.
