Commercial Surge Suppressor -BT P BCM 25 RM/4P
  • Overview
  • Features
  • Datasheet
  • Showcase
  • Inquiry

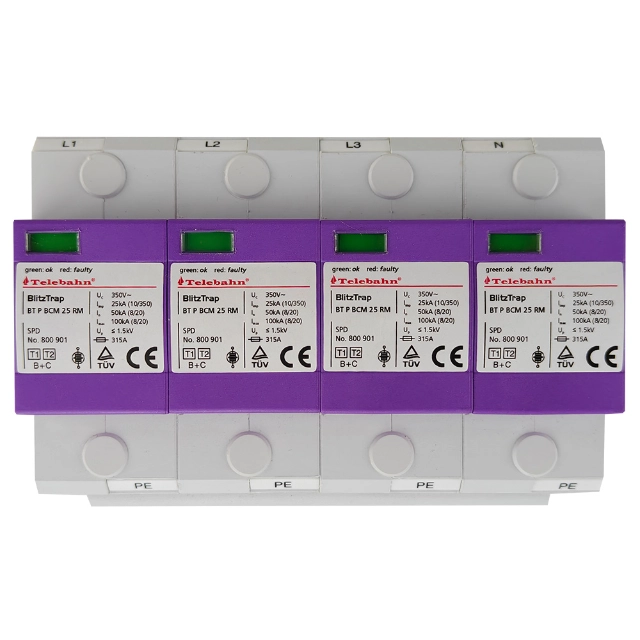

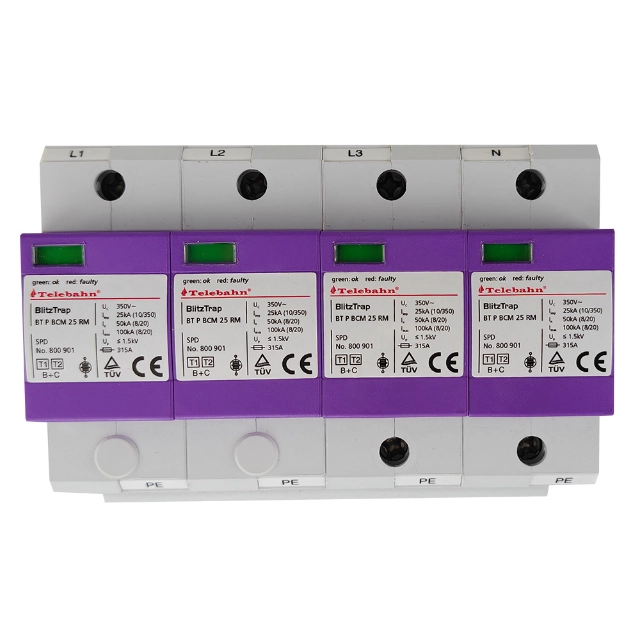

Commercial Surge Suppressor -BT P BCM 25 RM/4P

Commercial Surge Suppressor BT P BCM 25 RM/4P（800914）is for installation at LPZ 0A-1 or higher zones, protecting low voltage equipment from surge damage. Applied in modular SPD Class I+II (Class B+C) for 3 phase TN-S(“4+0” circuit) various power supply system single-pole protection module. Designed according to IEC 61643-11 ; EN 61643-11; GB/T 18802.11.

  • Type

    BT P BCM 25 RM/4P

  • Art.-No.

    800914

  • Features

    1. Combined lightning current arrester for 3-phase TN-S ( 4+0 circuit) system, Pluggable.
    2. Adopt hermetical High Energy Gas Discharge Tube(GDT) technology, high follow current extinguishing capacity.
    3. Extremely low voltage protection level.
    4. Mode of protection L-PE;N-PE.
    5. Double thermal disconnector devices, providing more reliable protection.
    6. Green window will change to red when fault occurs, also provide remote alarm terminal at the same time.
    7. Crafted from selected flame-retardant enclosure and Utilizing advanced European technology to ensure complete and reliable safeguarding of electrical equipment.

Inquiry
Download Datasheet
Commercial Surge Suppressor
Surge Protective Device
Surge Ratings:
In=50kA(8/20μs)
Mode of protection:
L/N-PE
Modules:
4P System：3 Phase TN-S
Protection Elements:
High Energy GDT
High Surge Currents:
limp=25kA(10/350μs), Imax=100kA(8/20μs)

Commercial Surge Suppressor is designed to protect business electrical systems, office equipment, and IT infrastructure from transient voltage surges. Installed at distribution panels or critical circuits, it prevents damage caused by lightning, switching operations, and grid fluctuations. By stabilizing voltage levels and reducing electrical stress, it ensures reliable operation of computers, servers, networking systems, and other sensitive equipment. Suitable for offices, retail spaces, and commercial buildings, this suppressor enhances system performance, minimizes downtime, and supports continuous business operations, making it an essential component of modern commercial power protection strategies.

Features

1. Business System Protection: Designed to safeguard office equipment, IT systems, and commercial electrical networks from transient voltage spikes and power disturbances.
2. Panel and Circuit-Level Installation: Can be installed at distribution panels or critical circuits to provide centralized protection across multiple devices and systems.
3. High-Speed Surge Response: Reacts instantly to voltage fluctuations and surge events, preventing damage to sensitive electronic equipment.
4. Voltage Stabilization Capability: Helps maintain consistent voltage levels, reducing electrical stress on computers, servers, and networking devices.
5. Multi-Device Coverage: Protects a wide range of commercial equipment, including POS systems, lighting, security systems, and communication networks.
6. Reliable Continuous Operation: Provides automatic and uninterrupted protection, ensuring business systems remain operational during power disturbances.
BT P BCM 25 RM/4P Dimension

Advantages

1. Reduced Business Downtime: Prevents unexpected interruptions caused by voltage surges, ensuring continuous operations in commercial environments.
2. Protection for Critical Equipment: Safeguards servers, computers, networking devices, and point-of-sale systems from electrical damage.
3. Improved Operational Efficiency: Maintains stable power conditions, supporting consistent performance of business systems and processes.
4. Lower Maintenance Costs: Reduces repair and replacement expenses associated with surge-related equipment failures.
5. Enhanced Data Security: Protects IT systems from power disruptions that could result in data loss or system corruption.
6. Increased Safety Assurance: Helps reduce electrical hazards and improves overall safety for staff and facilities.
BT P BCM 25 RM/4P Circuit

Applications

1. Office Buildings: Protects computers, printers, networking systems, and communication equipment in daily business operations.
2. Retail Stores and POS Systems: Safeguards payment terminals, cash registers, and customer service systems from voltage surges.
3. Data Centers and Server Rooms: Ensures stable operation of servers, storage systems, and critical IT infrastructure.
4. Commercial Complexes: Protects lighting systems, elevators, and building management systems in large facilities.
5. Healthcare Facilities: Supports stable operation of medical equipment and monitoring systems in clinics and hospitals.
6. Educational Institutions: Safeguards computers, laboratory equipment, and network systems in schools and universities.
7. Hospitality and Service Industry: Protects hotel systems, security devices, and customer service infrastructure.
BT P BCM 25 RM/4P Installation

Technical Data

Product Showcase

BT P BCM 25 RM/2P Mounting TN System
TN Installations
BT P BCM 25 RM/1+N Mounting（TT System）
TT/TN Installations
BT P BCM 25 RM/3P Mounting TN-C System
TN-C Installations
BT P BCM 25 RM/4P Mounting TN-S System
TNC-S/TN-S Installations
BT P BCM 25 RM/3+N Mounting TT System
TT/TN-S Installations
BT P BCM 25 RM/2+N Installations
Two Phase Installations
AC SPD
BT BNM 100 RM
AC SPD T1+T2
BT P BCM 25 RM/2P
AC T1+T2 Surge Protective Device
BT P BCM 25 RM/3P
Surge Protective Device
BT P BCM 25 RM/4P
Surge Protection Device
BT P BCM 25 RM/1+N-S
Surge Protection
BT P BCM 25 RM/2+N-S
Surge Suppressor
BT P BCM 25 RM/3+N-S
