Din Rail Surge Suppressor -BT P BCM12.5 275 RM/2+N
  • Overview
  • Features
  • Datasheet
  • Showcase
  • Inquiry

Din Rail Surge Suppressor -BT P BCM12.5 275 RM/2+N

Din Rail Surge Suppressor BT P BCM12.5 275 RM/2+N（801437）is for installation at LPZ 0A-2 or higher, protecting low voltage equipment from surge damage. Applied in modular SPD Class I+II (Class B+C) for two-phase power supply system. Designed according to Designed according to IEC 61643-11; EN 61643-11; GB/T 18802.11.

  • Type

    BT P BCM12.5 275 RM/2+N

  • Art.-No.

    801 437

  • Features

    1. 10/350us 12.5kA for two phase AC system.
    2. Consist of MOV+GDT and thermal disconnection device.
    3. High discharge capacity, quick response, pluggable.
    4. Mode of protection: L-N/N-PE.
    5. Multifunctional connection for conductors and busbars.
    6. Green window will change to red when fault and also provide remote alarm control at the same time.

Inquiry
Download Datasheet

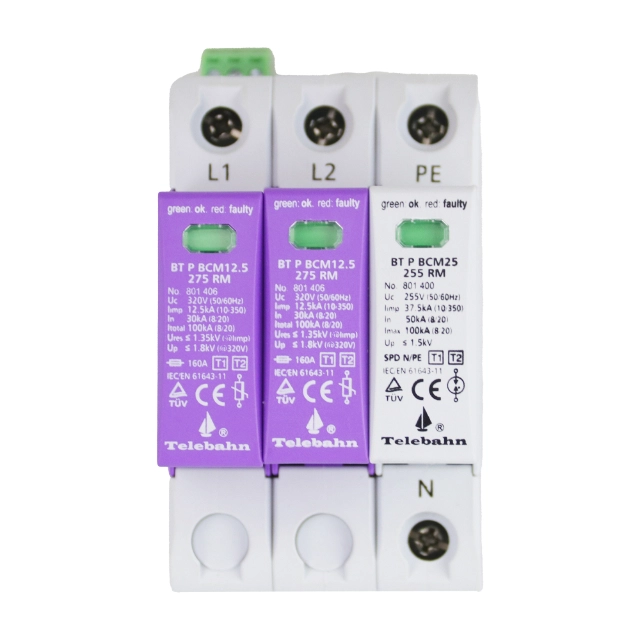

Din Rail Surge Suppressor
din rail surge protector
Location of Use:
Main Distribution Boards
System Type:
Two Phase
Modules:
2P+NPE
Protection Elements:
High Energy MOV+ High Energy GDT
High Surge Currents:
limp=12.5kA/37.5kA(10/350μs), Imax=65kA/100kA(8/20μs) （L-N/N-PE)

Din Rail Surge Suppressor is designed to reduce transient electrical disturbances inside power distribution systems by suppressing unwanted surge energy before it spreads across electrical circuits. Installed directly on standard DIN rail assemblies, it focuses on stabilizing voltage conditions, reducing electrical interference, and improving power consistency inside control cabinets. Unlike solutions centered mainly on equipment protection, Din Rail Surge Suppressor emphasizes disturbance control and electrical balance across distribution systems. It is suitable for industrial panels, commercial electrical cabinets, and structured electrical environments where stable voltage behavior and controlled surge suppression are essential.

Features

1. Transient Disturbance Suppression Design: Designed to suppress short-duration electrical disturbances before they influence surrounding circuits and panel systems.
2. Voltage Stability Enhancement: Supports smoother voltage behavior by minimizing fluctuations caused by surge activity and electrical switching.
3. DIN Rail Cabinet Integration: Allows organized installation within electrical cabinets using standard DIN rail mounting systems.
4. Electrical Noise Reduction Support: Helps decrease unwanted electrical interference that may affect sensitive control circuits and system performance.
5. Continuous Suppression Performance: Operates continuously to maintain electrical balance without requiring manual operation or adjustment.
6. Compact Distribution Panel Layout: Fits efficiently into control cabinets while supporting clean and organized panel configuration.
din rail mount surge protector

Advantages

1. Improved Electrical Power Consistency: Helps maintain smoother electrical performance by limiting short-term voltage instability.
2. Reduced Electrical Interference Across Circuits: Minimizes disruptive electrical activity that may affect nearby control or monitoring systems.
3. Better Voltage Environment Stability: Supports balanced electrical conditions inside distribution cabinets and control panels.
4. Lower Risk of System Disturbance: Helps reduce unexpected interruptions related to transient surge activity.
5. More Reliable Electrical Operation: Supports consistent power behavior in environments requiring controlled voltage conditions.
6. Simplified Integration Into Panel Systems: Can be incorporated into DIN rail electrical setups with minimal installation complexity.
7. Improved Electrical Quality Management: Supports better overall power quality across structured electrical environments.
din rail mounted surge protection

Applications

1. Industrial Control Cabinets: Supports cleaner electrical conditions for automated control systems and industrial panel environments.
2. Commercial Electrical Distribution: Helps stabilize voltage conditions in office buildings, retail facilities, and shared electrical systems.
3. Sensitive Monitoring Equipment: Suitable for environments where voltage interference may affect monitoring accuracy.
4. Structured Power Distribution Systems: Used to reduce disturbance across organized multi-circuit electrical layouts.
5. Communication and Signal Environments: Supports more stable electrical behavior for communication-related equipment.
6. Renewable Energy Distribution Panels: Helps suppress voltage disturbances inside solar and energy storage electrical systems.
din rail mounted surge protection device

Technical Data

Product Showcase

din rail mount surge protection devices
BT P BCM12.5 275 RM/2+N
BT P BCM12.5 275 RM/2+N Dimension
Dimension
BT P BCM12.5 275 RM/2+N Circuit
Circuit
