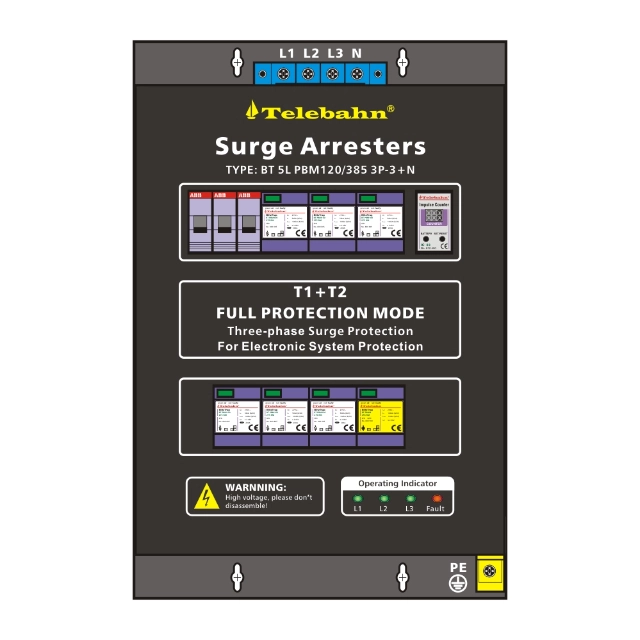

Full House Surge Protector -BT 5L PBM120 385V 3P-3+N
-
Type
BT 5L PBM120 385V 3P-3+N
-
Art.-No.
840200X
-
Features
1. Surge arresters for class I three-phase TT/TN-S system.
2. Max. Discharge current up to 120kA 8/20us.
3. Built-in circuit breaker, prewired with SPD.
4. All wires (phase line to neutral line, phase line to ground, neutral line to ground full protection model).
5. Full protection design, able handle part of lightning current, protection equipment can continue normal operation.
6. Green indicates normal and red light indicates fault for operation.
7. Impulse counter function, recording the lightning events.
8. External wiring terminal, easy for connection, suitable for indoor application.
9. Suitable for three phase 380V/400V AC system compatible.
Full House Surge Protector is designed to manage sudden voltage rises entering residential electrical systems. Installed at the main distribution point, it limits surge energy before it reaches branch circuits and household equipment. The device supports normal home power loads while remaining active during everyday electrical use. Its structure suits standard residential panels and provides centralized voltage control across the entire home. By reducing exposure to external power disturbances, it helps maintain stable electrical conditions and supports long-term protection of wiring, appliances, and connected electronic devices.
Features
1. Main Power Entry Surge Control: Limits voltage spikes at the point where power enters the home.2. Fast Electrical Response: Reacts promptly when abnormal voltage levels occur.
3. Whole-Home Circuit Coverage: Controls surge exposure across all connected household circuits.
4. Defined Voltage Limiting Range: Keeps incoming voltage within preset safety thresholds.
5. Panel-Compatible Structure: Fits standard residential distribution and breaker panels.
6. Continuous Protection State: Remains active during daily household power operation.
Advantages
1. Appliance Damage Reduction: Lowers voltage-related stress on household electronics.2. Wiring Protection Support: Helps reduce surge impact on internal cables and connections.
3. Stable Indoor Power Conditions: Supports consistent voltage across home circuits.
4. Centralized Surge Control: Protects the entire home through a single installation point.
5. Long-Term Residential Use: Suitable for repeated surge events over extended periods.
6. Simple System Management: Operates without frequent adjustments or added complexity.
Applications
1. Residential Main Distribution Panels: Core surge protection for home electrical systems.2. Smart Home Power Networks: Supports stable supply for connected household devices.
3. Home Office Electrical Circuits: Protects computers and communication equipment.
4. Household Appliance Power Lines: Suitable for kitchen, living area, and utility circuits.
5. Detached Houses and Villas: Matches independent residential electrical layouts.
6. Electrical System Upgrade Projects: Adds surge control during panel or wiring updates.
Technical Data
