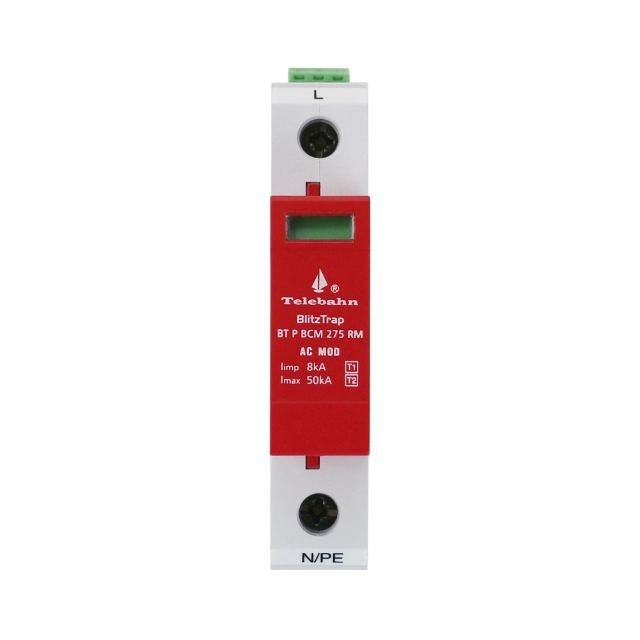

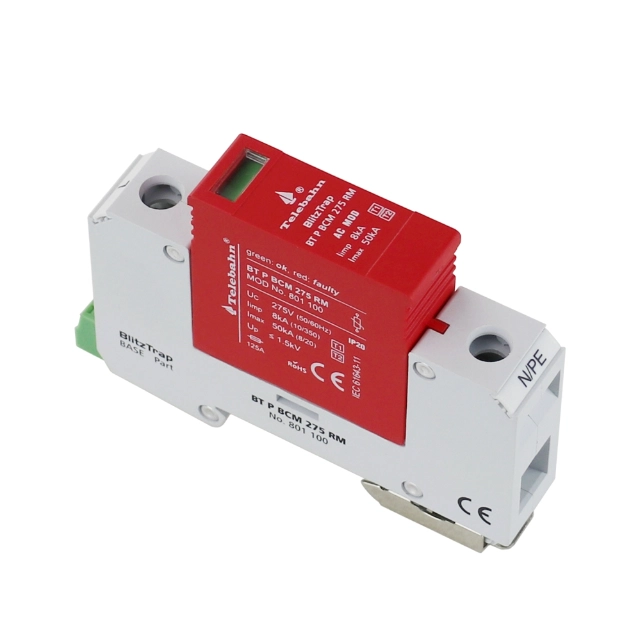

Lightning Protection for Homes -BT P BCM 275 RM

Lightning Protection for Homes BT P BCM 275 RM (801100) is designed for installation in LPZ 0A–2 or higher zones, providing robust protection for low-voltage equipment against power surges, with an optional remote terminal feature. It is a pluggable SPD Class I + Class II device suitable for 1-pole power supply systems. Engineered in accordance with IEC 61643-11:2011, EN 61643-11:2012, and GB/T 18802.11-2020 standards, it ensures reliable surge mitigation and enhanced electrical safety for residential applications.

  • Type

    BT P BCM 275 RM

  • Art.-No.

    801100

  • Features

    1. Pluggable module, easy for installation and maintenance.
    2. High discharge capacity, quick response.
    3. Double thermal disconnector devices, providing more reliable protection.
    4. Max. lightning discharge current up to 8kA(10/350μs).
    5. Green window will change when fault and also provide remote alarm control at the same time.
    6. Mode of protection: L-N; N-PE; L-PE; L-PEN.
    7. Crafted from selected flame-retardant enclosure and Utilizing advanced European technology to ensure complete and reliable safeguarding of electrical equipment.

Inquiry
Download Datasheet
Lightning Protection for Homes
Surge Protector
Surge Protective Device
LMode of protection: L-N; N-PE;L-PE; L-PEN.
Modules: 1-Pole
Surge Ratings: Iimp=8kA(10/350μs), In=25kA(8/20μs)
High Surge Currents: Imax=50kA(8/20μs)
Housing: Pluggable Design

Lightning Protection for Homes system provides a comprehensive safety solution that minimizes the risk of structural damage, electrical hazards, and equipment failure during severe weather. By managing and redirecting the immense energy produced by lightning, it helps preserve the integrity of household wiring, sensitive electronics, and smart home devices. Designed for modern residential environments, it offers homeowners a reliable and long-lasting layer of protection that enhances overall electrical safety and peace of mind.

Features

1. Complete Protection Network: Integrates air terminals, down conductors, grounding rods, and surge protection devices.
2. High Conductivity Materials: Uses copper or aluminum components for efficient energy dissipation into the earth.
3. Surge Suppression Integration: Includes SPDs to safeguard electrical panels and household appliances.
4. Rapid Energy Diversion: Redirects lightning currents safely away from the home structure within microseconds.
5. Weather-Resistant Components: Designed to withstand harsh outdoor environments and long-term exposure.
6. Flexible Installation Options: Suitable for new builds, remodels, or retrofit applications.
7. Standards Compliance: Built according to IEC/EN 62305 lightning protection guidelines.
8. Long Service Life: Durable construction ensures reliable performance year after year.
9. Minimal Maintenance: System requires little ongoing inspection or servicing.
Surge Protection

Advantages

1. Enhanced Family Safety: Reduces fire, shock, and electrical risks associated with lightning strikes.
2. Protects Household Electronics: Prevents damage to smart devices, appliances, and HVAC systems.
3. Property Preservation: Helps protect roofing, wiring, and structural components during storms.
4. Reliable Operation: Maintains protection even under frequent lightning exposure.
5. Lower Repair Costs: Prevents expensive replacements and insurance claims caused by electrical damage.
6. Energy-Efficient: Passive system operates without consuming electricity.
7. Long-Term Investment: Adds safety value and stability to modern residential electrical systems.
8. Broad Compatibility: Suitable for both standard homes and advanced smart home networks.
Surge Suppressor

Applications

1. Single-Family Houses: Provides whole-home lightning and surge protection for essential electrical circuits.
2. Smart Homes: Shields automation hubs, sensors, and integrated electronics from transient overvoltage.
3. Vacation Properties: Ensures protection for homes that remain unattended during storms.
4. Multi-Story Residences: Ideal for buildings with rooftop equipment or extended wiring systems.
5. Rural and Suburban Homes: Essential in areas with frequent lightning storms or unstable power grids.
6. Villas and Premium Properties: Protects valuable electronic systems, security devices, and appliances.
Lightning Protection

Technical Data

Product Showcase

Surge Protector Device
Surge Arrester
SPD
