Lightning Protection System -BT P C 3P 385 RM
The Lightning Protection System BT P C 3P 385 RM(810134) gets installed at LPZ 0B-1 or higher to protect low voltage equipment from surge damages. The modular SPD Class II (Class C) uses this system for three phase TN-C(“3+0"circuit) power supply system applications. This product meets standards of GB 18802.1-2011 and IEC 61643-11:2011 alongside EN 61643-11:2012.
-
Type
BT P C 3P 385 RM
-
Art.-No.
810134
Inquiry
Download Datasheet
Location of Use:
Sub-Distribution Boards
Sub-Distribution Boards
System type:
Three Phase, TN-C
Three Phase, TN-C
Protection Elements:
High Energy MOV
High Energy MOV
Surge Ratings: In=20kA(8/20μs)
High Surge Currents: Imax=40kA(8/20μs)
The Lightning Protection System represents a reliable lightning protection method that protects three-phase TN-C power systems by safeguarding equipment from surge damage. The product has surge protection capabilities of 20 kA (8/20 µs) and features a modular construction with real-time status indicators as well as IEC 61643-11 standard compliance which makes it an optimal solution for industrial and commercial needs.
Protect Your Electrical Systems with Reliable Lightning Protection
The BT P C 3P 385 RM lightning protection system represents a high-performance solution through which electrical three-phase systems maintain protection from both lightning strikes and power surges. This industrial system delivers high-performance overvoltage protection to provide strong reliability for commercial purposes and maintain continuous operation and enhance safety performance.
Key Features
- High Surge Capacity: Handles up to 20 kA (8/20 µs) for maximum protection against overvoltage, ensuring the safety of sensitive equipment.
- Three-Phase Design: Specifically designed for electrical systems requiring a three-phase power arrangement, providing detailed and reliable protection solutions.
- Compact and Modular: Space-saving design with plug-and-play modules, ensuring easy installation and quick maintenance.
- Real-Time Status Indicators: Visual alerts for efficient monitoring, allowing for quick detection of operational status and troubleshooting.
Benefits:
- Extended Equipment Life: Minimizes damage from electrical surges, prolonging the operational life of critical equipment.
- Reduced Downtime and Maintenance Costs: Shortens system downtime and decreases maintenance expenses due to the device’s efficient performance and low need for upkeep.
- Regulatory Compliance: Ensures the device operates within performance levels that meet all industry safety regulations.
- Wide Range of Applications: Suited for various industrial, commercial, and data center needs, offering versatile protection across multiple sectors.
Applications:
- Power Distribution Systems and Machinery: Protects electrical systems and machinery in industrial settings from damaging power surges and overvoltages.
- IT Infrastructure: Safeguards sensitive IT equipment, ensuring operational continuity in data centers and telecommunication networks.
- Solar and Renewable Energy Networks: Ideal for providing surge protection in solar energy and renewable energy systems.
- Commercial and Industrial Facilities: Enhances the safety and reliability of electrical systems across a broad range of facilities.
Advantages of Lightning Protection System
- Enhanced Security: Protects buildings, electrical systems, and sensitive equipment from lightning strikes and overvoltage damage, preventing fires and electrical hazards.
- Outstanding Reliability: Handles powerful surge currents and protects systems even in the most challenging environments, ensuring continued performance.
- Compliance with Safety Standards: Meets international standards such as IEC 62305 and IEC 61643 for safety and performance, ensuring certified protection.
- Reduced Restoration Expenses: Offers long-term cost savings by reducing restoration and maintenance costs, enhancing operational efficiency.
What is a Lightning Protection System, and why is it important?
Through its structure a Lightning Protection System (LPS) protects electrical components and equipment alongside structures in two ways: lightning defense and surge protection. The system guides powerful electrical surges to the ground thus protecting equipment through avoiding fires in addition to electrical hazards and damage to sensitive electronics. An LPS protects equipment while simultaneously reducing maintenance interruptions and supporting longer equipment durability.
Technical Data

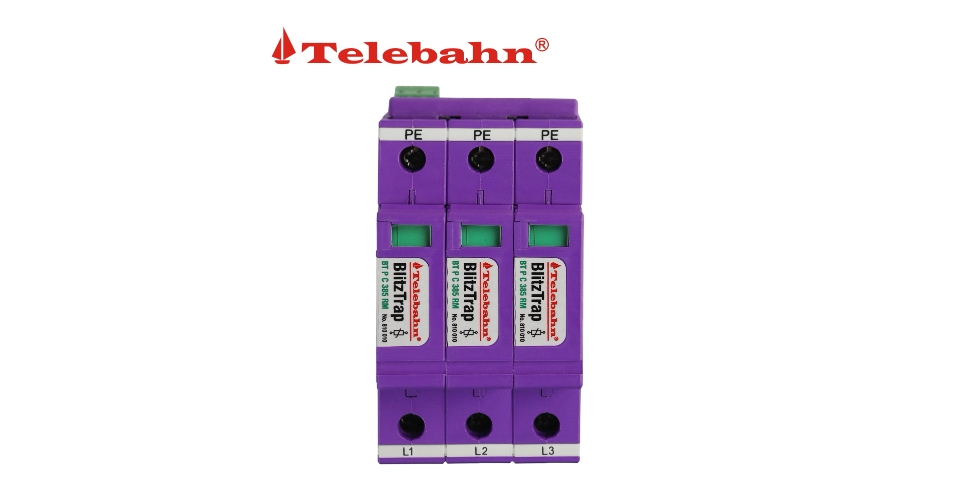

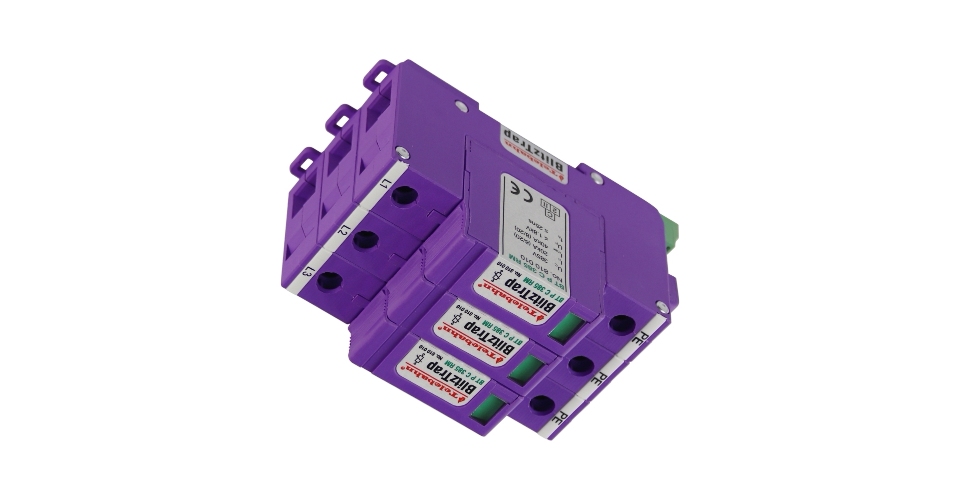

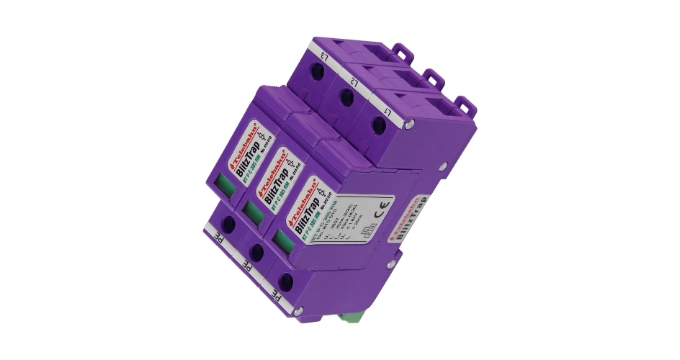

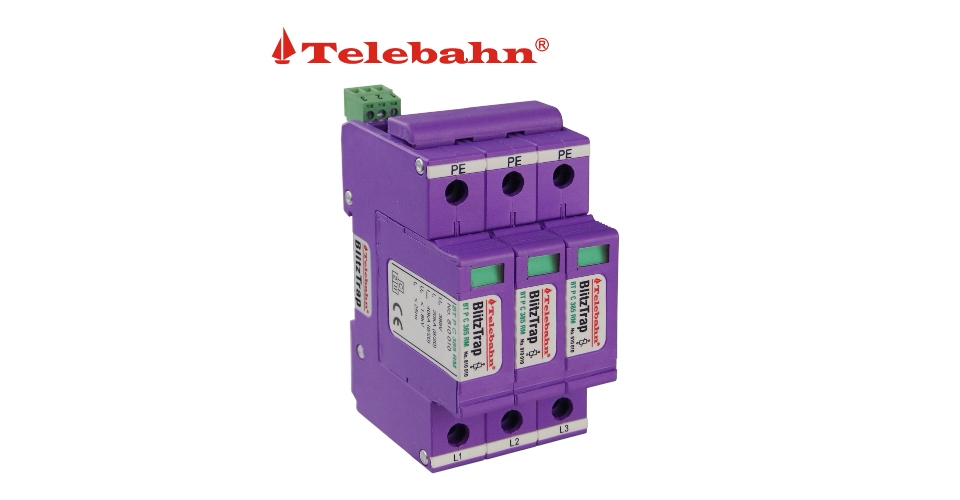

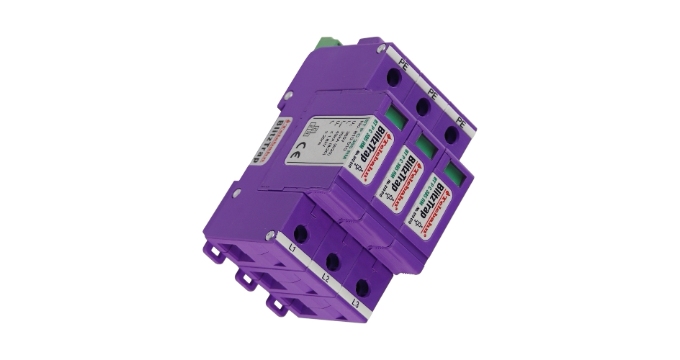

Product Showcase

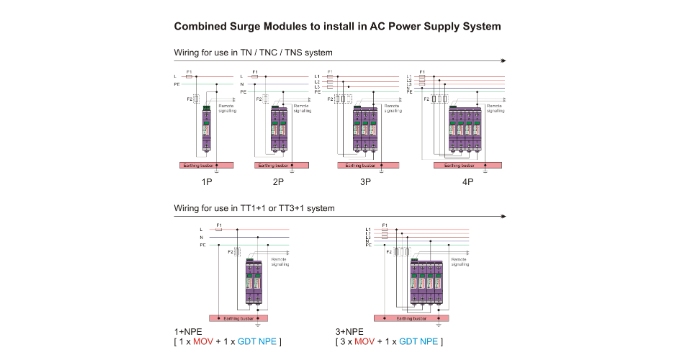

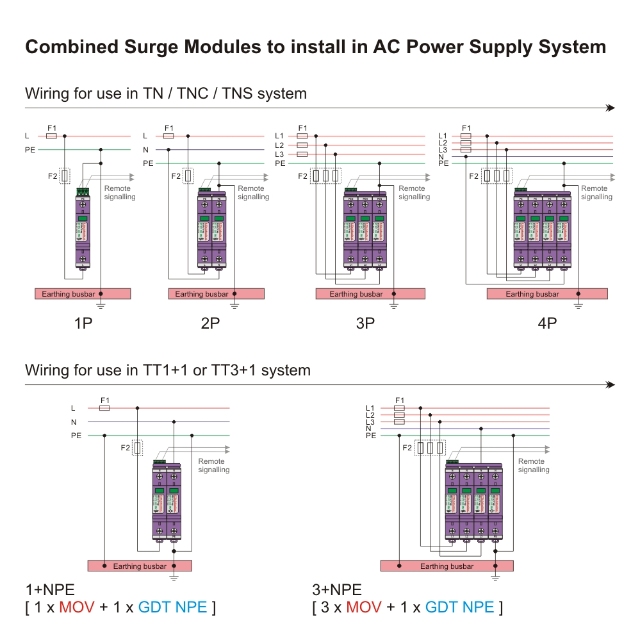

Mounting
