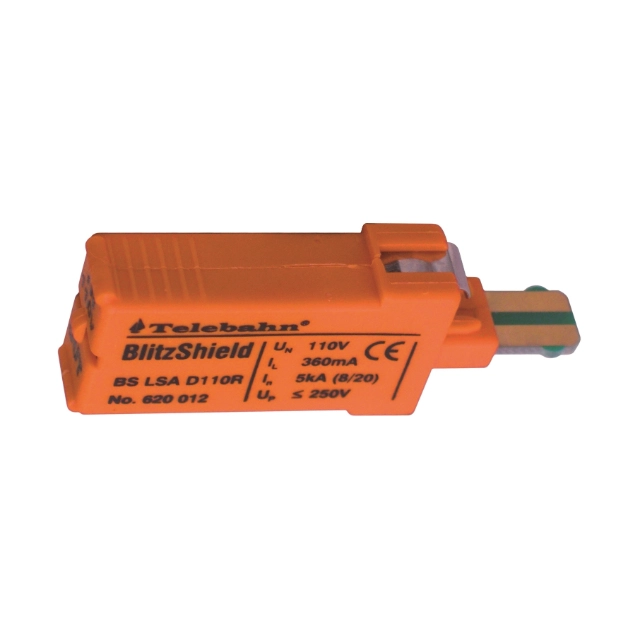

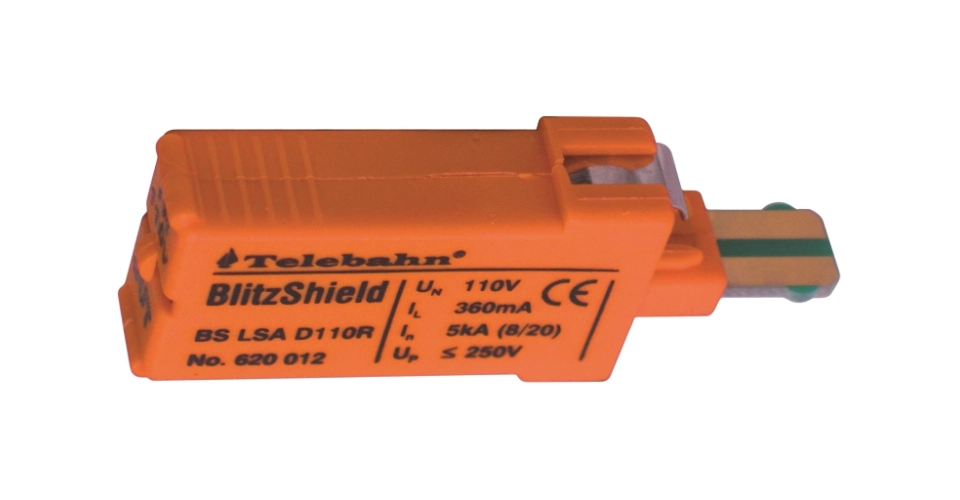

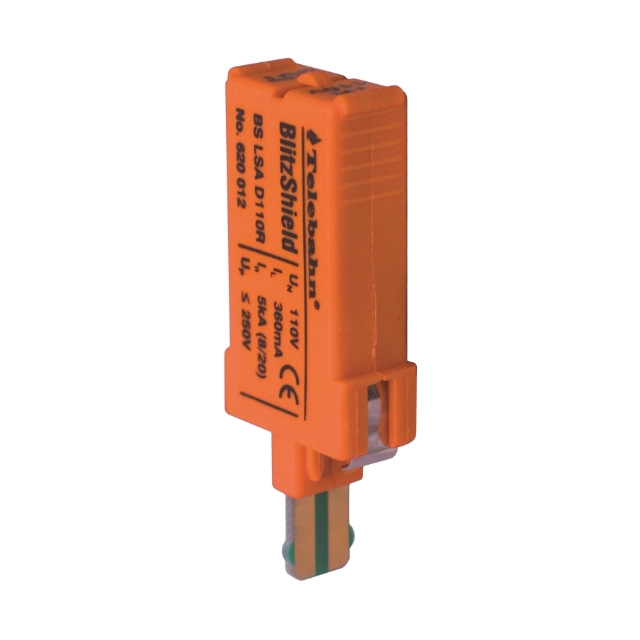

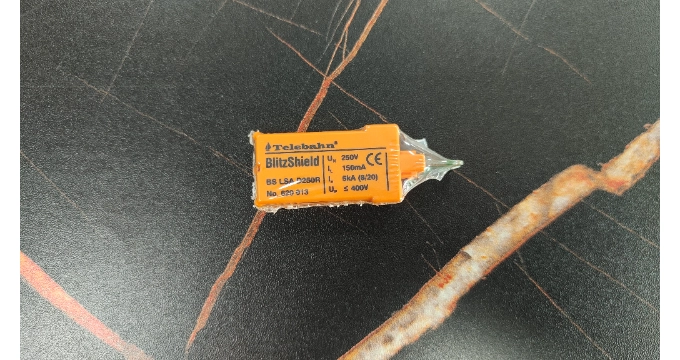

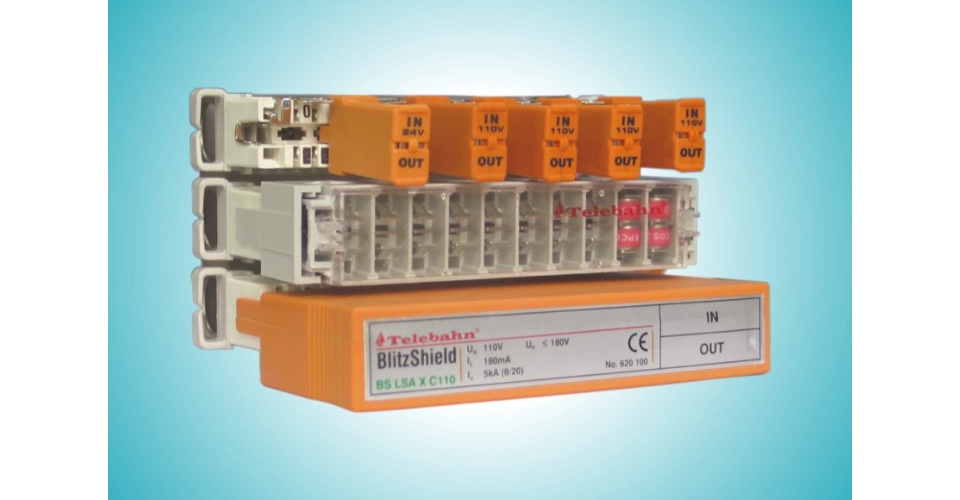

LSA-PLUS Surge Suppressor -BS LSA D110R

The LSA-PLUS Surge Suppressor BS LSA D110R (620012) is primarily designed for telephone systems and measurement/control applications. Manufactured in compliance with IEC 61643-21 and GB/T 18802.21 standards, it utilizes LSA-PLUS wiring technology for easy and efficient installation. This device provides reliable surge voltage protection for either a single conductor pair or two individual conductors.

  • Type

    BS LSA D110R

  • Art.-No.

    620012

  • Features

    1. Good transmission.
    2. For installing at LPZ 0B-2 or higher.
    3. Decoupling resistance integrated.

Inquiry
Download Datasheet
LSA-PLUS Surge Suppressor
Surge Protection Device
LSA-PLUS disconnection block
12V/24V/110V/250V
Orange thermoplastic， UL 94-V0
Used for telephone system or measurement and control system
Support OEM and ODM

The LSA-PLUS surge suppressor protects telecommunication and data lines from harmful voltage spikes caused by lightning strikes, power surges, or switching transients. Designed to integrate seamlessly with LSA-PLUS connection systems, it offers quick, tool-free installation in distribution frames and junction boxes. Its compact, modular design allows for easy maintenance, with pluggable components and clear visual indicators for status monitoring. Ideal for use in telephone exchanges, data centers, and industrial networks, it ensures reliable performance and safeguards sensitive equipment.

Features

1. LSA-PLUS Terminal Compatibility: Specifically designed for use with LSA-PLUS connection blocks in telecom and data systems.
2. Signal Line Protection: Protects analog and digital communication lines from transient overvoltages and surges.
3. Tool-Free Installation: Easily plugs into existing LSA-PLUS blocks without the need for additional tools or wiring.
4. Low Insertion Loss: Maintains signal clarity and performance with minimal impact on transmission speed.
5. Fast Response Time: Activates within nanoseconds to divert surge energy before it reaches sensitive equipment.
6. Modular Replaceable Design: Allows for quick replacement of individual suppressor modules without disturbing other connections.
7. Space-Efficient Form Factor: Compact size fits neatly into crowded telecom cabinets or distribution frames.
8. Standards Compliance: Built to meet IEC and ITU-T recommendations for surge protection in communication systems.
Surge Protective Device

Advantages

1. Protects Communication Networks: Prevents surge damage to telecom, DSL, and data transmission lines.
2. Minimizes Service Interruptions: Maintains stable voice and data connectivity by blocking transient overvoltages.
3. Tool-Free Installation: Installs directly onto LSA-PLUS terminal blocks without special tools or rewiring.
4. Space-Efficient Solution: Compact design fits seamlessly into dense telecom and structured cabling environments.
5. Easy Maintenance: Modular construction allows quick replacement of suppressor elements without downtime.
6. Cost-Effective Protection: Reduces repair and equipment replacement costs due to surge-related failures.
7. Compatible with Various Systems: Ideal for PBX systems, data centers, and structured voice/data networks.
Surge Protector

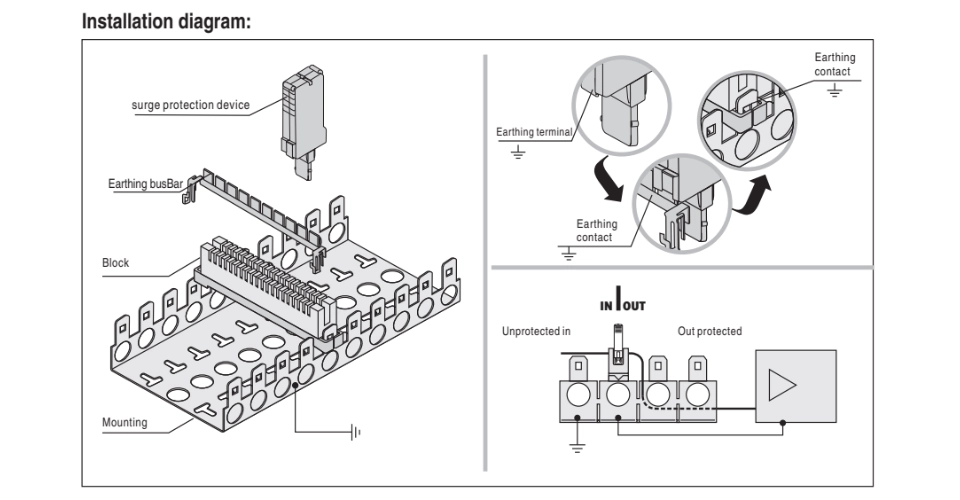

Installation

1. Identify the LSA-PLUS Block: Locate the correct terminal block where the incoming telecom or data lines are terminated.
2. Power Down the System: For safety, disconnect or isolate the telecom equipment during installation.
3. Choose the Protection Pair: Determine which line pairs (e.g., Tip and Ring) require surge protection.
4. Insert the Surge Suppressor: Snap the LSA-PLUS surge suppressor directly into the terminal block slot above the line pair—no tools needed.
5. Ensure Proper Grounding: Verify that the terminal block is connected to a reliable grounding system. The suppressor discharges surges through this path.
6. Secure Cabling: Make sure all cables are properly seated and that no wiring is loose or stressed.
7. Label the Protected Lines: Clearly mark which pairs are surge protected for future maintenance or inspections.
8. Power Up and Test: Restore power or telecom connection and verify that all protected devices are functioning normally.
BS LSA C48L Installation

Applications

1. Telephone Exchange Systems: Protects central office equipment and subscriber lines from surge damage.
2. PBX Systems: Shields private branch exchanges in commercial buildings from lightning and overvoltage events.
3. DSL and Broadband Lines: Prevents transient surges on high-speed data lines used for internet access.
4. Structured Cabling Systems: Applied in voice and data networks using LSA-PLUS terminal blocks.
5. Communication Control Rooms: Used to protect critical telecom infrastructure in control centers and hubs.
6. Outdoor Telecom Cabinets: Installed in roadside or remote cabinets where lines are exposed to environmental surges.
7. Security and Access Systems: Protects intercoms, alarm systems, and access control devices connected via phone lines.
8. Industrial Automation Networks: Ensures protection for signal transmission over telecom-grade wiring in harsh environments.
LSA SPD

Technical Data
