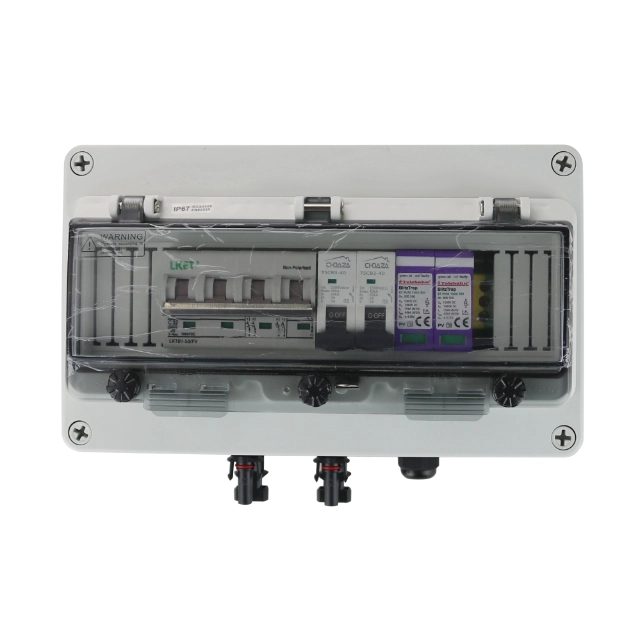

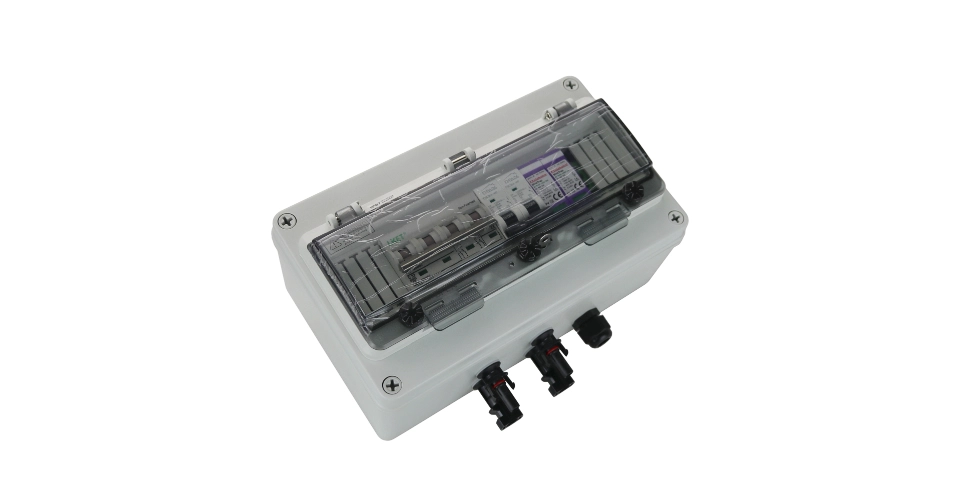

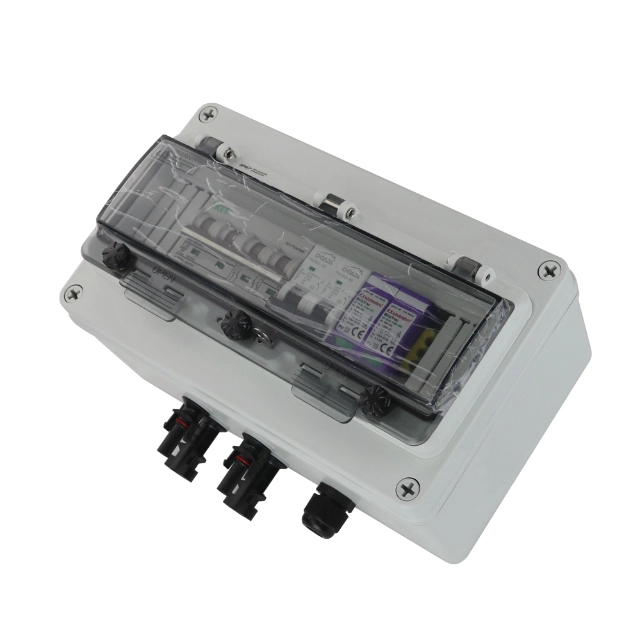

Photovoltaic Surge Protection Box – BT PVM 1000 2P RM/EPB 1X 2-2 32A
-
Type
BT PVM 1000 2P RM/EPB 1X 2-2 32A
-
Art.-No.
800598
-
Features
1. Adopting PV SPD DC modules type 2 (class II) for protecting PV system. 2. Single-pole module max. lightning discharge current up to 20kA (8/20us). 3. Built-in circuit breaker, prewired with SPD, easy for installation. 4. With the 2-input connected and 2-output connected of PV-MC4 ports interface. 5. Dual arc-extinguishing protection device, providing full protection against fire hazards for equipment. 6. Integrated DC-fuse allows safe replacement of protection modules without arc formation. 7. Green window will change when fault and also provide remote alarm control at the same time. 8. Advanced Western European technology guarantees ultra-reliable PV surge protection. 9. Water proof level lP65, suitable for outdoor PV solar application.
A photovoltaic surge protection box is not just an accessory but a necessity for any solar PV installation. It plays a critical role in protecting your investment, maintaining system efficiency, and ensuring safe operation in the face of unpredictable electrical events. Whether for a small rooftop array or a large-scale solar farm, integrating an SPD box is a smart and essential step in solar system design.
Features
1. High Discharge Capacity: Able to handle high-energy surges with discharge currents up to 40kA or more.2. Multi-Channel Protection: Offers multiple input/output terminals for string inverters or centralized systems.
3. Thermal Disconnection and Failure Indication: Built-in safety mechanisms alert users to any malfunction in the SPD unit.
4. Compact and Weatherproof Design: IP65 or higher-rated enclosure to ensure durability in extreme environments.
5. Easy Installation: Designed for quick mounting and minimal wiring complexity.
6. Standards Compliance: Meets global electrical safety standards (e.g., IEC 61643, UL 1449), supporting code-compliant system designs.
Advantages
1. Equipment Protection: Prevents damage to inverters, solar panels, batteries, and monitoring devices caused by lightning strikes and voltage surges.2. System Reliability: Ensures continuous, stable performance of solar power systems by minimizing the risk of unexpected failures.
3. Extended Lifespan: Reduces wear and tear on critical components, increasing the overall lifespan of the solar installation.
4. Safety Assurance: Lowers the risk of electrical fires and faults, enhancing safety for both people and property.
5. Versatile Application: Suitable for residential, commercial, industrial, off-grid, and utility-scale solar systems.
6. Cost-Effective Solution: Provides affordable protection that helps avoid expensive equipment replacement and downtime.
7. Durable Construction: Features weatherproof and UV-resistant enclosures (e.g., IP65) for reliable outdoor use in harsh environments.
Applications
1. Residential Solar Systems: Protects rooftop solar panels, inverters, and home electrical systems from lightning and power surges.2. Commercial & Industrial PV Installations: Safeguards larger-scale solar setups in businesses and factories, ensuring continuous power and equipment protection.
3. Utility-Scale Solar Farms: Provides multi-channel surge protection for high-voltage arrays and centralized inverters across wide areas.
4. Off-Grid & Hybrid Solar Systems: Shields energy storage components and controllers in remote or standalone solar systems from voltage spikes.
5. Solar-Powered Street Lighting & Infrastructure: Protects outdoor lighting, traffic control, and surveillance systems integrated with solar power.
6. Agricultural Solar Applications: Ensures stable operation of solar-powered irrigation pumps, electric fences, and monitoring devices in rural areas.
Technical Data

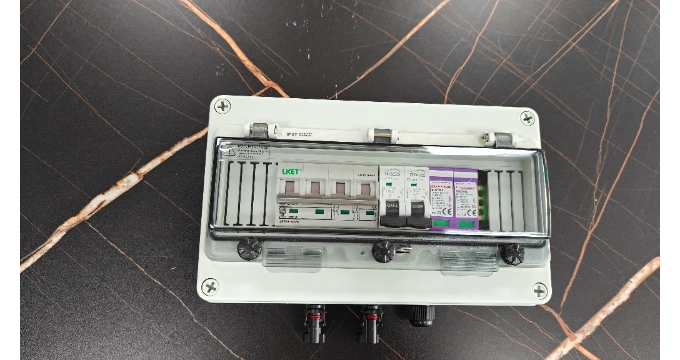

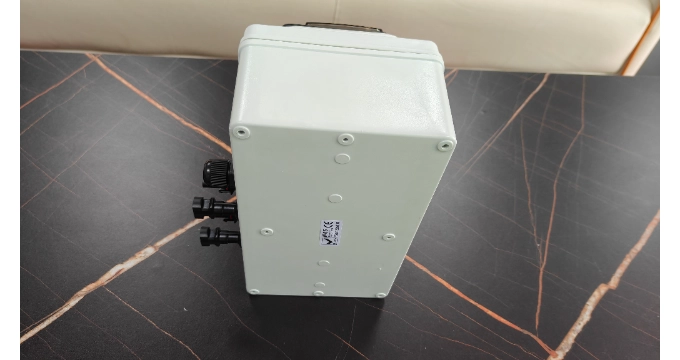

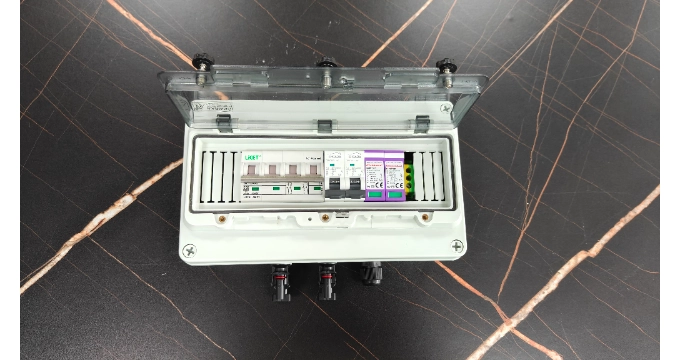

Product Showcase
