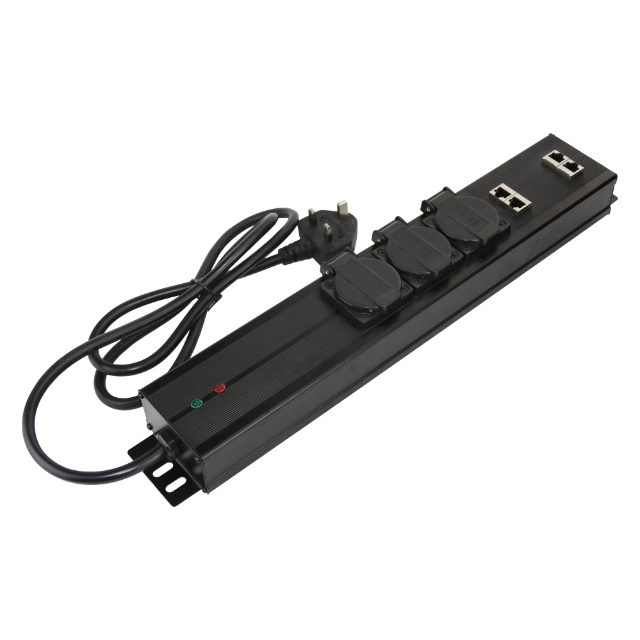

Power Strip Surge Protector with RJ45 -BT PST10 3SF/2E CAT6

Power Strip Surge Protector with RJ45 BT PST10 3SF/2E CAT6 (830673) is a surge protective power socket designed to safeguard terminal electronic equipment and network systems. Equipped with LED indicators for clear protection and grounding status monitoring, it provides reliable SPD Type 2/3 (Class II/III) surge and lightning protection for single-phase power supply systems and CAT6 or Class E network systems. Compatible with IEEE 802.3af/at/bt PoE standards, the device is designed in accordance with IEC/EN 61643-11 and IEC/EN 61643-21, as well as GB/T 18802.11 and GB/T 18802.21, ensuring comprehensive and dependable protection performance.

Type

BT PST10 3SF/2E CAT6
Art.-No.

830673
Features

1. Provides Surge Protection, with combined technology of fast response of Metal Oxide Varistor (MOV), and High DischargeCapacity of Gas Discharge Tube (GDT).
2. Equipped with 3 sockets that could be modified according to your national standard plug/sockets（US/UK/EU/CN).
3. Two LED Indicators, Green LED for Surge Protection Status; Red LED for Grounding Connection Status.
4. Cat 6 in the channel (class E), Power over Etheret lEEE 802.3 compliant (up to PoE++/4PPOE).
5. For installation in standard 19" distribution cabinet.
6. Built-in suppressor filter.

Inquiry

Download Datasheet

Support PoE++/4PPOE System 4x RJ45 port

3x power sockets（UK/US/EU/CN, Optional）

Built-in suppressor filter

Aluminum housing

For installation in standard 19" distribution cabinet

Power Strip Surge Protector with RJ45 provides comprehensive power and data line protection in one convenient device. Designed for modern workstations and networked equipment, it shields connected electronics from lightning strikes, voltage spikes, and transient surges while ensuring stable Ethernet connectivity.

Features

1. Dual Protection: Safeguards both AC power outlets and Ethernet RJ45 ports.
2. Surge Suppression: Built-in MOVs protect against voltage spikes and lightning surges.
3. Gigabit Data Support: Maintains 10/100/1000 Mbps Ethernet transmission speed.
4. PoE Compatibility: Supports Power over Ethernet (IEEE 802.3af/at) devices.
5. LED Indicators: Show power and protection status at a glance.
6. Fire-Retardant Housing: Durable enclosure ensures safe and long-lasting performance.
7. Overload Protection: Integrated circuit breaker prevents excess current damage.
8. Multiple Outlets: Powers and protects several devices simultaneously.
9. Standards Compliance: Meets IEC/EN 61643 and UL 1449 surge protection standards.

Power Strip with Surge Protection and RJ45 Ports

Advantages

1. All-in-One Protection: Shields both power and data lines from surges and interference.
2. Device Longevity: Extends the lifespan of computers, routers, and network peripherals.
3. Stable Connectivity: Maintains network integrity with minimal signal loss.
4. Easy to Use: Plug-and-play setup—no configuration required.
5. Space Efficient: Combines AC and Ethernet protection in one compact unit.
6. Safety Assurance: Fire-safe materials and overload protection ensure secure operation.
7. Cost-Effective: Reduces downtime and prevents equipment replacement costs.

Applications

1. Home Offices: Protects PCs, modems, and routers from electrical surges.
2. Business Workstations: Safeguards networked devices, VoIP phones, and printers.
3. Data Centers: Provides combined power and network surge protection for IT systems.
4. Surveillance Systems: Protects PoE cameras and NVRs through RJ45 ports.
5. Educational Institutions: Ensures reliable protection for classroom computers and network hubs.
6. Retail & POS Systems: Keeps payment terminals and routers safe from power fluctuations.

Technical Data

Product Showcase

Surge Protector with Ethernet Protection

Start Your Project

We will respond to you within 24 hours after receiving your request email.

3 Years Warranty
Free Customized Design
Welcome OEM and ODM Service
CE RoHS CB KEMA TUV Certificates
Surge Protecetive Device（SPD）Factory
30+ Years Surge Protector SPD Experiences

Type	BT PST10 3SF/2E CAT6
Art.-No.	830673
Protection function	Power Supply Line	RJ45 Interface Network
Nominal voltage [U_N]	230V(50/60 Hz)	48V
Rated voltage (max. continuous a.c. voltage) [U_c]	255V(50/60 Hz)	34V
Rated voltage (max. continuous d.c. voltage) [U_c]	–	48V
Max. continuous d.c. voltage (pair-pair PoE) [U_c]	–	57V
Nominal current [I_L]	10A	1A
Lightning impulse current (10/350μs)[I_imp]	–	0.5kA(line-PG)
Nominal discharge current (8/20μs) [I_n]	10kA	0.15kA(line-line), 2.5kA(line-PG)
Total nominal discharge current (8/20μs)[I_total]	20kA	10kA(line-PG)
Voltage protection level( at In)[U_p]	1.15kV(L-N)	≤ 190V(line-line), ≤ 600V(line-PG)
Voltage protection level at In (PoE) [U_p]	–	≤ 600V(line-line)
Voltage protection level (1kV/us)[Up]	1.5kV(L/N-PE)	≤ 145V(line-line) ≤ 500V(line-PG)
Trassmission frequency[f_G]	–	250MHz
Max. data transmission rates [V_s]	–	1000Mbits/s
Insertion loss at 250MHz[a_E]	–	≤ 2dB
Capacitance[C]	–	≤ 165pF(line-line) ≤ 255pF(line-PG)
Max. back up fuse [F]	10A gL/gG or B 10A	–
Short-circuit withstand capability at Max. back up fuse	1kA_rms	–
Connection(input/output)	Standard plug/socket	RJ45 shield socket
Connecting	1.5mm², 150cm(length)	–
Pinning	–	1/2, 3/6, 4/5, 7/8
Operating temperature range [Tu]	-40°C…+80°C
Operating state indication	Green light
Grounding state indication	Red light
Housing	Aluminum
Mounting on	For standard 19” distribution cabinet
Compliance	IEC/EN 61643-11; IEC/EN 61643-21; GB/T 18802.11;GB/T 18802.21
Certification	CE(LVD,EMC), RoHS
