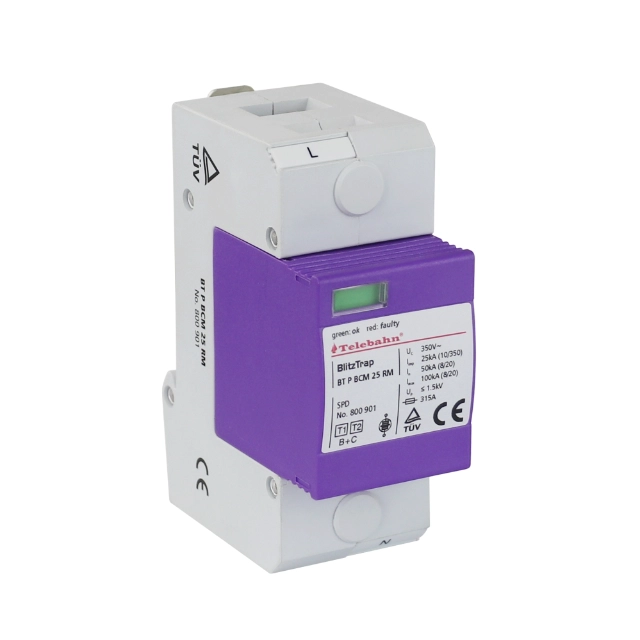

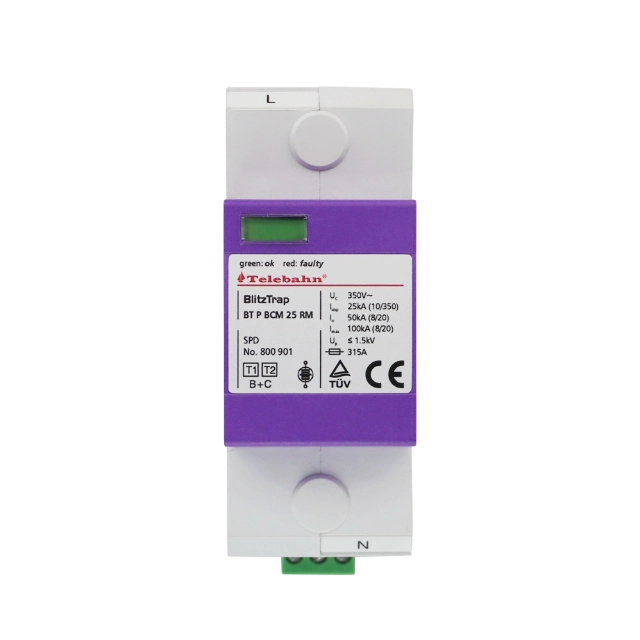

Power Surge Protectors -BT P BCM 25 RM
-
Type
BT P BCM 25 RM
-
Art.-No.
800901
-
Features
1. Single-pole lightning impulse current up to Iimp 25kA(10/350μs).
2. Single-pole lightning current surge arrester, pluggable.
3. Adopt hermetical High Energy Gas Discharge Tube(GDT) technology, high follow current extinguish capability.
4. Mode of protection:L-N;L-PE;N-PE;L-PEN.
4. Double thermal disconnection device, provide more reliable protection.
5. Multifunctional connection for conductors and pure copper busbar.
6. Green windows will change to red when fault and also provide remote alarm control at the same time.
7. Crafted from selected flame-retardant enclosure and Utilizing advanced European technology to ensure complete and reliable safeguarding of electrical equipment.
1P
High Energy GDT
limp=25kA(10/350μs), Imax=100kA(8/20μs)
Power Surge Protectors are designed to control sudden voltage spikes within electrical systems. Installed at key power distribution points, they limit surge energy before it reaches connected circuits and equipment. These devices support stable operation across residential and light commercial power networks while remaining active during normal electrical use. By controlling abnormal voltage levels, they help reduce electrical stress on wiring and connected devices. Their structure suits standard distribution panels, making them suitable for systems where consistent voltage conditions and long-term electrical protection are required.
Features
1. System-Level Surge Control: Limits voltage spikes across connected electrical networks.2. Fast Electrical Reaction: Responds promptly when abnormal voltage levels appear.
3. Multi-Circuit Coverage: Controls surge exposure for several power lines at once.
4. Defined Voltage Limiting Range: Maintains incoming voltage within set safety levels.
5. Distribution Panel Compatibility: Designed for standard electrical panel installation.
6. Continuous Operating State: Remains active during routine power supply conditions.
Advantages
1. Device Protection Support: Reduces voltage-related stress on connected equipment.2. Wiring Impact Reduction: Limits surge influence on internal cables and terminals.
3. Stable Power Conditions: Helps maintain consistent voltage across circuits.
4. Centralized Electrical Control: Covers multiple lines through a single protection point.
5. Long-Term Electrical Use: Suitable for repeated surge exposure over time.
6. Simple System Operation: Functions without frequent manual intervention.
Applications
1. Electrical Distribution Panels: Core surge control for power entry points.2. Residential Power Systems: Supports stable operation of household circuits.
3. Light Commercial Power Networks: Suitable for offices and service spaces.
4. Equipment Power Lines: Protects connected electrical devices and controllers.
5. Power System Upgrades: Adds surge control during wiring updates or replacements.
6. Long-Term Power Installations: Fits systems requiring continuous voltage protection.
Technical Data
