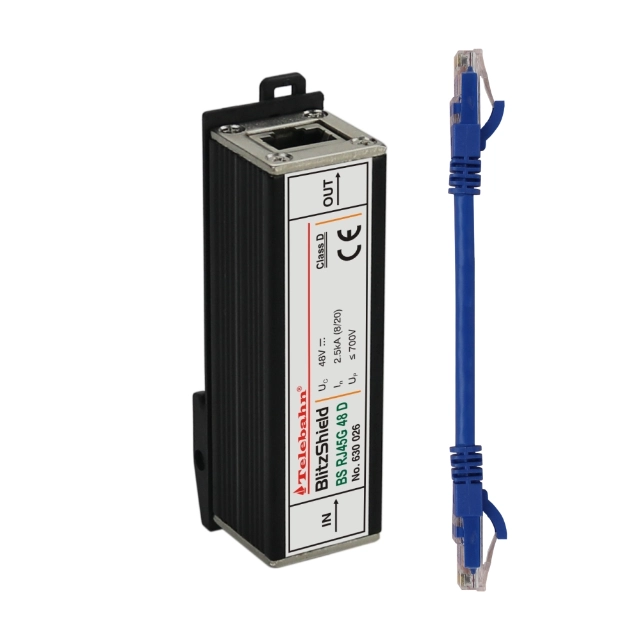

RJ45 Data Surge Protector – BS RJ45G 48 D(B)
-
Type
BS RJ45G 48 D(B)
-
Art.-No.
630049
-
Features
1. ldeally suited for retrofitting, protection of all lines.
2. Cat.6 in the channel(class D).
3. Power over Ethernet lEEE 802.3 compliant (up to PoE++ /4P PoE).
4. For installation in conformity with the lightning protection zone concept at the boundaries from 0B -2 and higher.
5. Good discharge capacity, low voltage protection level.
6. All 8 lines protected.
7. Protection of all pairs by powerful Gas Discharge Tubes.
8. Quick response, high transmission speed, low siqnal attenuation.
9. Fully shielded RJ45 socket, 35mm standard guide rail, easy to install.
10. 10/100/1000Mb(1G) Data Rate.
11. CAT5, CAT5e, CAT6, CAT6a Compatible.
12. 802.3af, 802.3at, 802.3bt and Passive PoE Compatible.
13. PoE, PoE+ and PoE++ Compatible.
14. Suitable for Communication and Data Networks.
RJ45 Data Surge Protector is designed to protect Ethernet-based systems from transient overvoltage, lightning strikes, and power surges. Supporting Gigabit data rates and Power over Ethernet (PoE), it ensures stable communication and device safety without affecting signal quality. Ideal for use in data centers, offices, industrial automation, and security systems, this surge protector offers fast response and durable protection compliant with international standards.
Features
1. RJ45 Interface: Designed for Ethernet data line protection using standard RJ45 connectors.2. High-Speed Support: Compatible with 10/100/1000 Mbps Gigabit Ethernet transmission.
3. Surge Suppression: Protects network equipment from lightning-induced surges and transient overvoltage.
4. PoE Compatibility: Supports Power over Ethernet (IEEE 802.3af/at) without data loss.
5. Low Insertion Loss: Maintains stable signal integrity and minimal data delay.
6. Fast Clamping Response: Reacts in nanoseconds to protect sensitive network hardware.
7. Grounding Terminal: Provides safe discharge path to earth ground for surge energy.
8. Compact Design: Easy to install near routers, switches, or PoE devices.
9. Compliance: Meets IEC 61643-21 and EN 50539-11 surge protection standards.
Advantages
1. Reliable Network Protection: Prevents damage to network ports, routers, and switches.2. Preserves Data Quality: No loss of data speed or signal degradation during operation.
3. Long-Term Equipment Safety: Extends the service life of IP cameras, access points, and servers.
4. Cost-Effective: Avoids expensive network repairs and downtime due to surge events.
5. Simple Installation: Plug-and-play setup requires no configuration.
6. Durable Construction: Industrial-grade components ensure stable and continuous performance.
Applications
1. Data Centers: Protects switches, servers, and Ethernet backbone connections.2. IP Surveillance Systems: Safeguards PoE IP cameras, NVRs, and monitoring devices.
3. Office Networks: Protects routers, VoIP phones, and LAN connections.
4. Industrial Automation: Ensures safe communication for PLCs and control systems.
5. Telecommunications: Protects base stations and transmission equipment.
6. Smart Buildings: Secures Ethernet-connected IoT and building control devices.
7. Outdoor Installations: Provides surge protection for Wi-Fi access points and antennas.
Technical Data
