SPD Manufacturers -BT BCM 25 RM/2+N

SPD Manufacturers BT BCM 25 RM/2+N（801037）is for installation at LPZ 0A-1 or higher, protecting low voltage equipment from surge damage and remote terminal is optional. Applied in modular Hybrid SPD Class I for two phase TT/TN(“2+1” circuit) power supply system. Designed according to IEC 61643-11 ; EN 61643-11; GB/T 18802.11.

  • Type

    BT BCM 25 RM/2+N

  • Art.-No.

    801037

  • Features

    1. 10/350μs, 8/20μs sparkgap, Two-phase TT/TN(“2+1” circuit) lightning surge protector.
    2. Lightning impulse current withstand max.25kA (10/350μs) L-N, max.100kA (10/350μs) N-PE.
    3. Adopt hermetical GDT technology, high follow current extinguishing capacity.
    4. Extremely low voltage protection level.
    5. Double thermals for parallel or series (V-shape) connection.
    6. Multifunctional connection for conductors and pure copper busbar.
    7. Green light indicates power functional mode (L-N module).

Inquiry
Download Datasheet

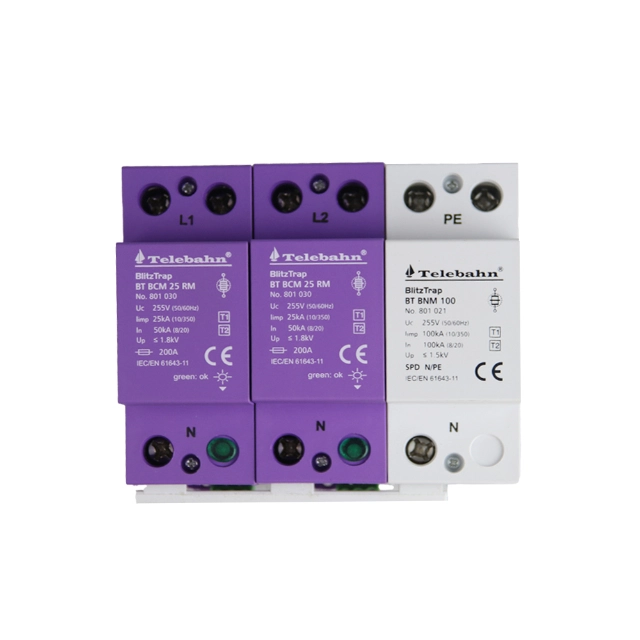

SPD Manufacturers

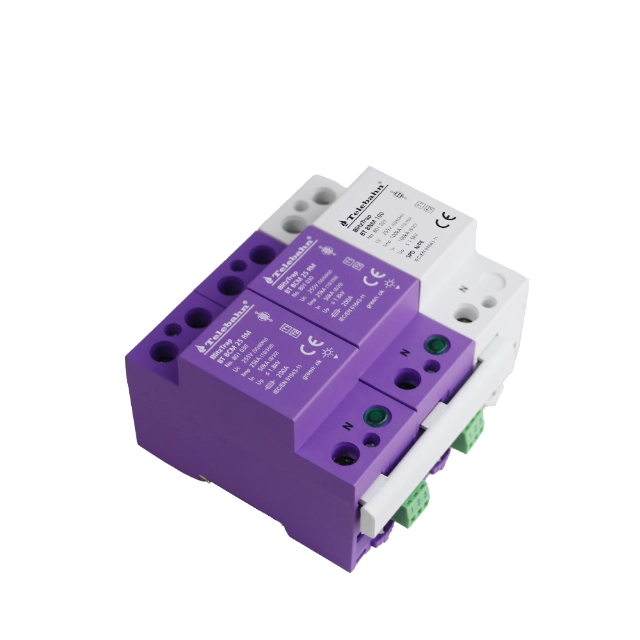

Surge Protector Manufacturers
Location of Use:
Main Distribution Boards
System Type:
2 Phase, TT/ TN
Modules:
2P+NPE
Protection Elements:
High Energy GDT
High Surge Currents:
limp= 25 kA/100 kA (10/350μs), Imax=100kA/200kA(8/20μs)

SPD Manufacturers focus on supplying surge protection devices designed for coordinated overvoltage control across electrical systems. Rather than emphasizing general electrical protection services, the focus is placed on SPD product categories, installation coordination, and multi-level surge protection requirements. By supporting Type 1, Type 2, Type 3, and application-specific SPD configurations, SPD Manufacturers help improve surge coordination between different protection points. Suitable for electrical systems requiring structured overvoltage management, SPD Manufacturers support installations where electrical consistency, panel integration, and surge control performance are important.

Features

1. Multi-Type SPD Product Support: Supports different SPD categories including Type 1, Type 2, and Type 3 configurations for varied installation requirements.
2. Coordinated Surge Protection Deployment: Helps support structured surge management where multiple SPD locations work together within one system.
3. Electrical Panel Integration Capability: Suitable for installation within distribution boards, control cabinets, and structured electrical systems.
4. Application-Specific SPD Selection: Supports different surge protection arrangements depending on system voltage, environment, and protection level requirements.
5. Standardized Electrical Compatibility: Designed for systems requiring organized integration and coordinated electrical protection performance.
6. Flexible System-Level Configuration: Allows adaptation across electrical environments requiring layered overvoltage control.
7. Support for Structured Surge Planning: Helps improve consistency where electrical systems require coordinated SPD positioning.
Surge Arrester Manufacturers

Advantages

1. Better Multi-Level Surge Coordination: Supports more effective overvoltage control by coordinating protection across different SPD installation points.
2. Improved Flexibility in Protection Design: Allows selection of different SPD types based on system structure and protection objectives.
3. Enhanced Electrical System Integration: Supports smoother integration into structured electrical distribution environments.
4. Reduced Complexity in Surge Planning: Helps simplify deployment where multiple protection stages are required.
5. Improved Long-Term Surge Stability: Supports more dependable electrical behavior under repeated transient overvoltage exposure.
6. More Organized Electrical Protection Layout: Helps maintain consistency in systems requiring coordinated SPD arrangement.
Transient Voltage Surge Suppressor (TVSS) Manufacturers

Applications

1. Multi-Level Electrical Distribution Systems: Supports projects requiring coordinated surge protection across different electrical connection points.
2. Industrial Control and Automation Networks: Suitable for systems requiring layered SPD protection inside structured control environments.
3. Commercial Building Electrical Projects: Applied in buildings requiring organized surge protection between service entrances and internal circuits.
4. Renewable Energy Installations: Supports coordinated SPD deployment in solar and energy storage electrical systems.
5. Infrastructure Electrical Systems: Used in transportation, utilities, and public systems requiring structured overvoltage control.
6. Electrical Engineering and Retrofit Projects: Suitable for system redesigns requiring multi-stage surge protection planning.
7. Structured Panel Protection Environments: Supports coordinated SPD installation inside distribution and control cabinets.
Lightning Surge Protector Manufacturers

Technical Data

Product Showcase

Type 1 SPD Manufacturers
BT BCM 25 RM/2+N
BT BCM 25 RM/2+N Dimension
Dimension
BT BCM 25 RM/2+N Circuit
Circuit
