Surge Protection Device for Solar -BT PVM 600 RM/2P(with box）

Surge Protection Device for Solar BT PVM 600 RM/2P(with box）（800596）is applied in photovoltaic system. The max. PV voltage up to UCPV=625V dc, protecting photovoltaic generator and inverter and so on. Designed according to IEC 61643-11 ; EN 61643-11; GB 18802.1-2011, EN 50539-11.

  • Type

    BT PVM 600 RM/2P(with box）

  • Art.-No.

    800596

  • Features

    1. Combined class II DC surge protector for Photovoltaic(PV) System.
    2. Pluggable module, easy for installation and maintenance.
    3. Approved falult-resistant Y-circuit, consist of two varistors and thermal disconnection devices.
    4. High discharge capacity, quick response.
    5. Dual arc-extinguishing protection device, providing full protection against fire hazards for equipment.
    6. Integrated DC-fuse allows safe replacement of protection modules without arc formation.
    7. Green window will change when fault and also provide remote alarm control at the same time.
    8. Advanced Western European technology guarantees ultra-reliable PV surge protection.

Inquiry
Download Datasheet

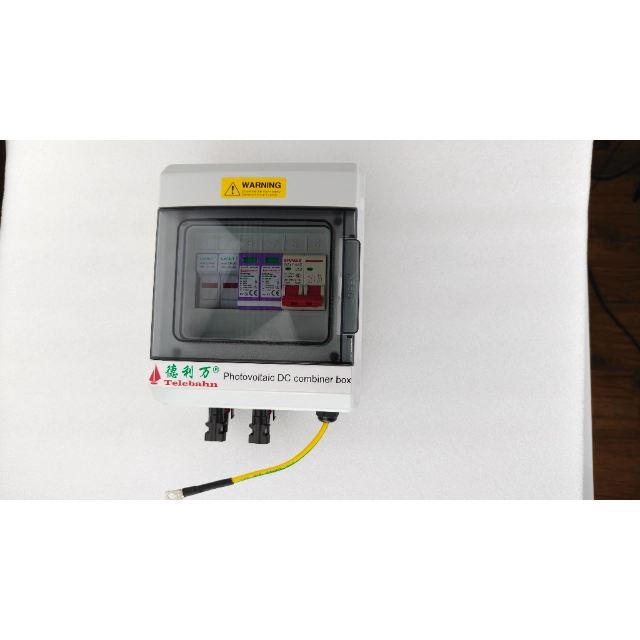

Surge Protection Device for Solar

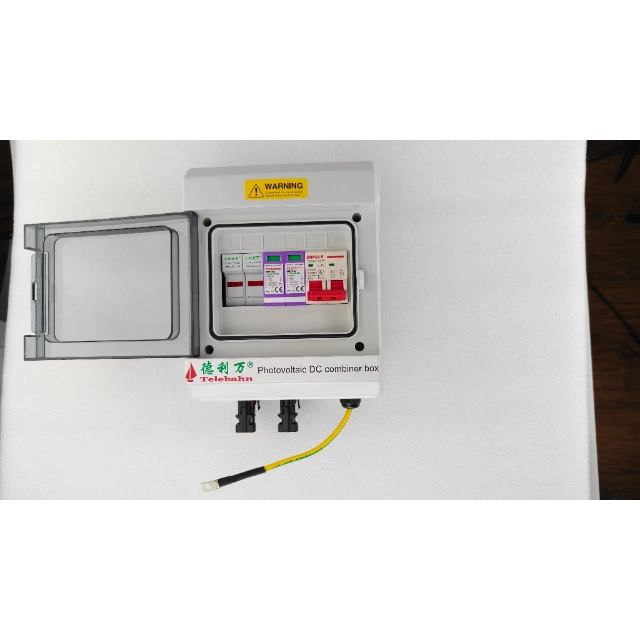

solar surge protector
DC 600V 2 Poles Solar Photovoltaic(PV) Box
Wall installation
Surge Ratings: In=20kA(8/20μs);
High Surge Currents: Imax=40kA(8/20μs)
Water proof level: lP65
Support OEM and ODM

Surge Protection Device for Solar is designed to safeguard solar energy systems from lightning strikes, power surges, and electrical faults. Installed at critical points, such as between the solar array and inverter or between the inverter and grid, it diverts excess surge energy safely into the ground, preventing damage to sensitive components like solar panels, inverters, and wiring. By reducing electrical stress, it ensures the longevity and efficiency of solar power systems. This device is essential for residential, commercial, and industrial solar installations, providing reliable protection against unexpected electrical disturbances and improving the overall safety and reliability of solar energy systems.

Features

1. Protection for Solar Systems: Designed specifically for solar power installations, protecting solar panels, inverters, and wiring from surge-related damage.
2. Fast Surge Response: Reacts instantly to electrical surges caused by lightning or grid fluctuations, diverting surge energy to the ground to minimize potential damage.
3. High Surge Current Capacity: Capable of handling high surge currents, making it ideal for solar installations in areas prone to frequent lightning and electrical disturbances.
4. Easy Integration: Can be installed seamlessly between the solar array and inverter or between the inverter and the grid without disrupting the system's operation.
5. Durable and Weather-Resistant: Built to withstand harsh outdoor environments, including exposure to moisture, heat, and UV radiation, ensuring long-term performance.
6. Maintains System Efficiency: Helps maintain consistent voltage levels and prevents power drops, improving the overall efficiency and performance of solar systems.
dc surge protector

Advantages

1. Enhanced System Protection: Provides first-line protection against lightning-induced surges, reducing damage to valuable solar equipment.
2. Increased System Longevity: By reducing electrical stress and preventing surge-related failures, it extends the lifespan of solar panels and inverters.
3. Reduced Risk of Fire: Minimizes the potential for electrical fires caused by power surges, improving home and business safety.
4. Cost-Effective Solution: Prevents costly repairs and replacements by mitigating surge damage and ensuring uninterrupted operation.
5. Consistent Energy Production: Helps maintain optimal power output from solar panels by reducing voltage instability caused by external electrical disturbances.
6. Easy Installation: Can be easily integrated into new or existing solar installations, requiring little effort to implement.
7. Compliance With Industry Standards: Meets international standards for surge protection, ensuring reliability and safety for solar energy systems.
dc surge suppressor

Applications

1. Residential Solar Systems: Protects home solar panels, inverters, and battery storage systems from lightning and power surges.
2. Commercial Solar Installations: Safeguards commercial solar setups from voltage spikes, ensuring uninterrupted power supply for businesses.
3. Solar Farms: Provides protection for large-scale solar energy systems, safeguarding hundreds of panels and inverters from external electrical disturbances.
4. Off-Grid Solar Systems: Protects remote solar systems and off-grid power supplies from lightning surges and voltage spikes.
5. Solar Power Generators: Ensures the safe operation of solar-powered generators and backup systems by mitigating electrical surges.
6. Utility-Scale Solar Projects: Protects utility-scale solar arrays from lightning-induced surges, reducing maintenance costs and system downtime.
7. Electric Vehicles Charging Stations: Protects solar-powered charging stations for electric vehicles from power surges and lightning strikes.
dc surge protective device

Technical Data
