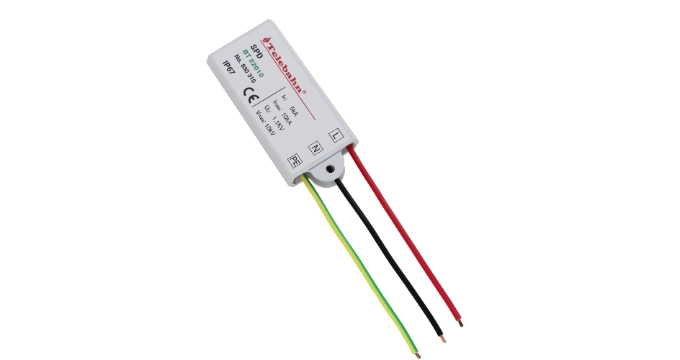

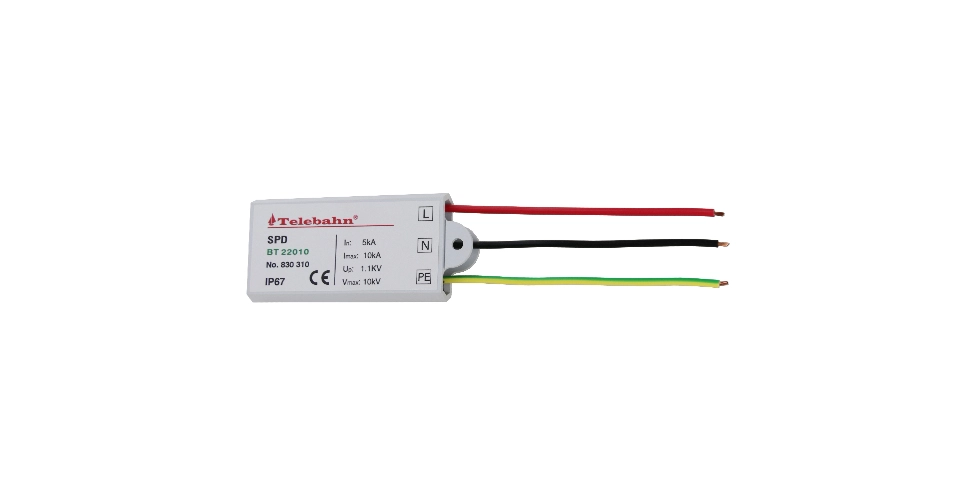

Surge Protection for LED Lightning -BT 22010

The BT 22010 (830310) Surge Protection Device is designed for fine terminal protection of LED drivers and electronic equipment. It can be soldered in parallel with the external power supply to effectively guard against power surges. Compliant with IEC 61643-11, EN 61643-11, and GB/T 18802.11 standards, it meets SPD Class III (Class D) requirements. Featuring a compact, sealed IP67-rated enclosure, it is waterproof and dustproof. This SPD offers Class II+II protection with full common mode and differential mode defense, as well as built-in leakage current and overcurrent cut-off capabilities. Perfectly suited for integration with LED driver input ports.

  • Type

    BT 22010

  • Art.-No.

    830310

  • Features

    1. Single-pole surge arrester, High discharge capacity.
    2. Low voltage protection level, Quick response.
    3. lP67 protection level.
    4. Every pathway consists of same elements . Between line and line/between lines and ground can protect as the same level.

Inquiry
Download Datasheet
Surge Protection for LED Lightning
LED Surge Protective Device
Applicable for all installation systems for LED Driver, CNC turning machine, general machinery.
Waterproof IP 67
Outdoor Use
10kV, 20KV
High Surge Currents:
ln=5kA(8/20μs), Imax=10kA(8/20μs)

Surge protection for LED lighting is essential to safeguard LED systems from voltage spikes caused by lightning or power surges. These devices prevent damage to sensitive LED drivers and circuits, ensuring stable performance and extending the lifespan of lighting installations. Ideal for both indoor and outdoor use, surge protectors offer reliable protection in residential, commercial, and industrial environments. Easy to install and maintain, they enhance safety, reduce maintenance costs, and are a vital component in any modern LED lighting system.

Features

1. LED-Specific Protection: Tailored to safeguard sensitive LED drivers and lighting circuits from voltage surges.
2. Compact Design: Small, lightweight form factor suitable for integration in lamp housings, poles, or fixtures.
3. Class II or III SPD: Provides fine protection against switching surges, lightning-induced overvoltages, and grid disturbances.
4. Wide Voltage Compatibility: Supports various LED lighting systems, including 12V, 24V, and 277V configurations.
5. High Surge Discharge Capacity: Handles high-energy transients effectively, ensuring long-term LED reliability.
6. Thermal Protection: Built-in thermal disconnect prevents overheating and enhances operational safety.
7. Visual Fault Indicator: LED or mechanical indicators show protection status for quick field inspection.
8. Waterproof and Weatherproof Options: Available in IP-rated enclosures for outdoor and street lighting applications.
Street Light Surge Protection Device

Advantages

1. Extends LED Lifespan: Protects LED drivers and fixtures from voltage surges, reducing premature failure.
2. Ensures Lighting Reliability: Maintains consistent performance in outdoor, industrial, or unstable grid environments.
3. Prevents Downtime and Maintenance: Reduces the need for frequent repairs or replacements of LED systems.
4. Increases System Safety: Built-in thermal and overcurrent protection helps prevent overheating and fire risks.
5. Ideal for Harsh Environments: IP67-rated enclosure offers waterproof and dustproof protection for outdoor installations.
6. Full-Mode Protection: Provides common mode and differential mode surge suppression for complete coverage.
7. Easy Integration: Designed to connect directly with the input port of LED drivers via parallel soldering.
Street Light Surge Protection

Applications

1. Street Lighting Systems: Protects outdoor LED lamps and drivers from surges caused by lightning or grid fluctuations.
2. Tunnel and Highway Lighting: Ensures uninterrupted operation of critical LED lighting in high-exposure environments.
3. Commercial Outdoor Lighting: Safeguards LED signage, façade lighting, and display systems in public spaces.
4. Industrial Lighting: Prevents surge-related failures in factory, warehouse, and loading area LED installations.
5. Stadium and Arena Lighting: Protects high-power LED floodlights used in sports and event venues.
6. Landscape and Garden Lighting: Offers surge protection for decorative or architectural lighting in open-air settings.
7. Smart City Infrastructure: Secures LED-based systems in IoT-enabled streetlights and urban lighting networks.
8. Transport Hubs: Used in airport runways, train stations, and bus terminals where lighting is critical and exposed to surge risks.

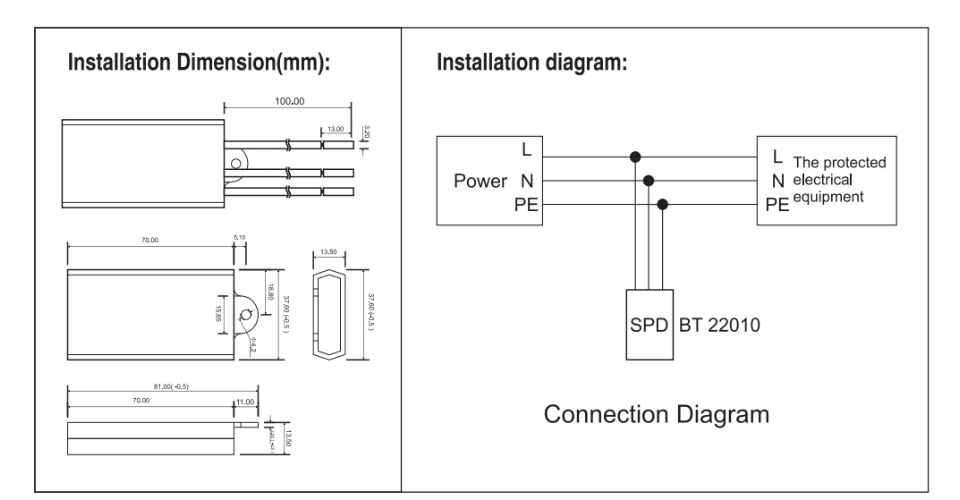

BT 22010 Installation

Technical Data

Product Showcase

surge protector for led lights
surge protection device street lighting
street lamp Lightning Protection
