Surge Protector Box

BT 5L BM100 275 3N + CM TT 275(FT) 840590 1. Adopting SPD class I + SPD class II combined "3+1" circuit for TT/TN-S system.
2. Single-pole module max. lightning discharge current up to L-N 100kA(8/20us) / N-PE 200KA (8/20us).
3. Panel with LED green insication of working status and red fault indication.
4. Built-in 3 phase system EMl filter function.
5. Waterproof terminal, for outdoor installation.

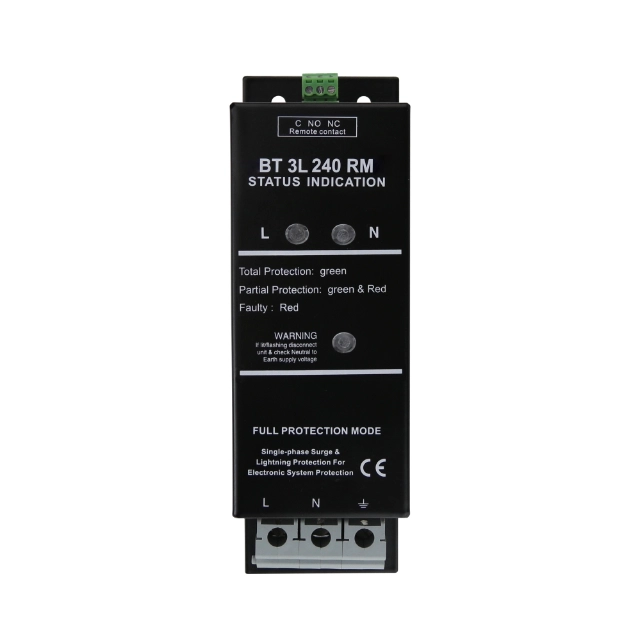

BT 3L 240 RM 840240 1. All wires (phase line to neutral line, phase line to ground, neutral line to ground full protection mode) voltageprotection level is very low.
2. Full protection design, able to handle part of lightning current, protection equipment can continue normal operation.
3. Visual protection status indication, with pre-failure indication and failure indication function.
4. With remote alerting function, remote warning signal can be connected to the remote monitoring management system platform buzzer or LED.
5. Visual warning indication of neutral/ground line fault due to faulty wiring.
6. Solid housing, base can be used as ultra-low inductance grounding metal panel.
7. Suitable for use in single phase: 220V/230V/240V 50/60 Hz AC systems.

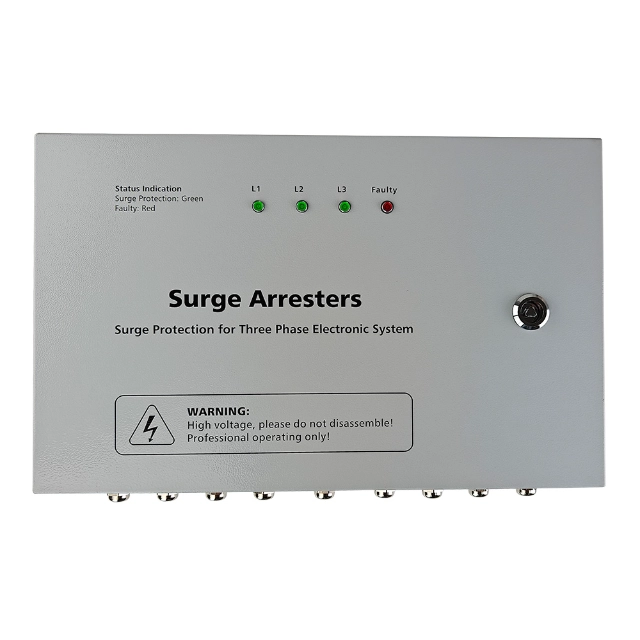

BT 5L 415 RM 840200 1. All wires (phase line to neutral line, phase line to ground, neutral line to ground full protection mode) voltage protection level is very low.
2. Full protection design, able to handle part of lightning current, protection equipment can continue normal operation.Repeated protection of innovative multiple thermal fuse technology in a lightning-intensive environment part of the protection circuit that causes an abnormality or malfunction can be safely disconnected from the power supply system. (does not affect the protection performance of the normal part)
3. Visual protection status indication, with pre-failure indication and failure indication function.
4. With remote alerting function, remote warning signal can be connected to the remote monitoring management system platform buzzer or LED.
5. Visual warning indication of neutral/ground line fault due to faulty wiring.
6. Solid housing, base can be used as ultra-low inductance grounding metal panel.
7. Suitable for use in three phase: 220V/380V(50/60 Hz), 240V/415V(50/60 Hz), 230V/400V(50/60 Hz) AC systems.

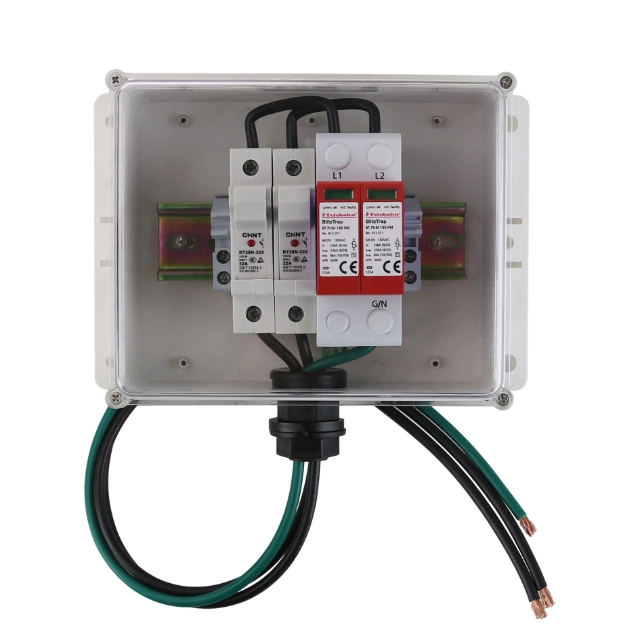

BT PV1000 + C275 RM/EPB 3X 800599 1. Combined class ll SPD for PV system surge protector.
2. High discharge capacity, quick response.
3. Built-in circuit breaker, DC-PV 2-input /2-output ports and AC 2-input ports and Grounded 2-output ports.
4. SPD green window will change to red when fault occurs,also provide remote alarm terminal at the same time.

BT 5L CM 275/40 3+1 840884 1. Green light indicates normal and red light indicates fault for operation.
2. Bulit-in circuit breaker, and thermal disconnection device, when the fault occurred, the thermal disconnection device will cut off the SPD from the power net, the green window will change.
3. External wiring terminal, easy for connection, suitable for indoor application.
4. Impulse counter function, recording the lightning events.
5. Suitable for TT/ TN-S installations.
6. Suitable for use in three phase: 220V/380V(50/60 Hz), 230V/400V(50/60 Hz) AC systems.

BT 5L BM160 275 RM/3+1 840502 1. Adopting SPD class l+ll (class B+C) combined "3+1" circuit for TT/TN-S system.
2. Single-pole module max. lightning discharge current up to L-N 160kA/ N-PE 200kA (8/20us).
3. Built-in circuit breaker (MCB), prewired with SPD, windows for green indication of working status and red fault indication.
4. Impulse counter function, recording the lightning events.
5. External wiring terminal, easy for connection.
