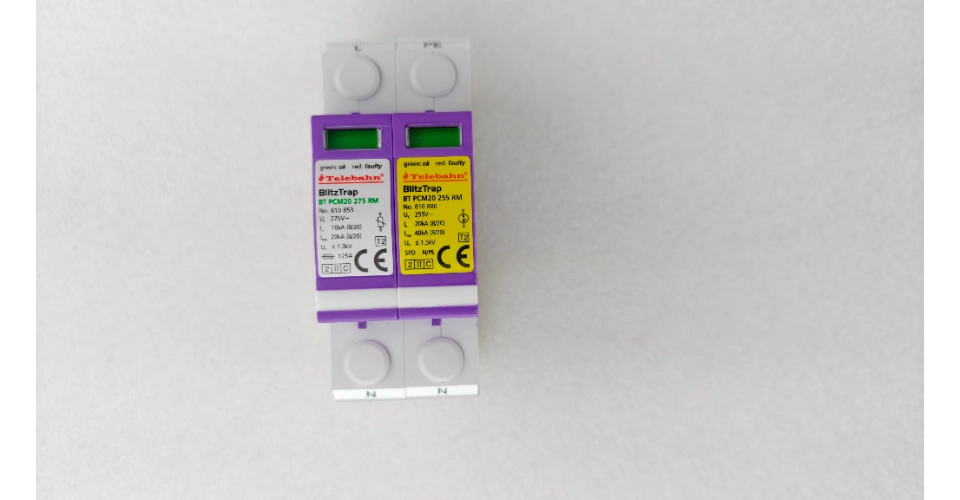

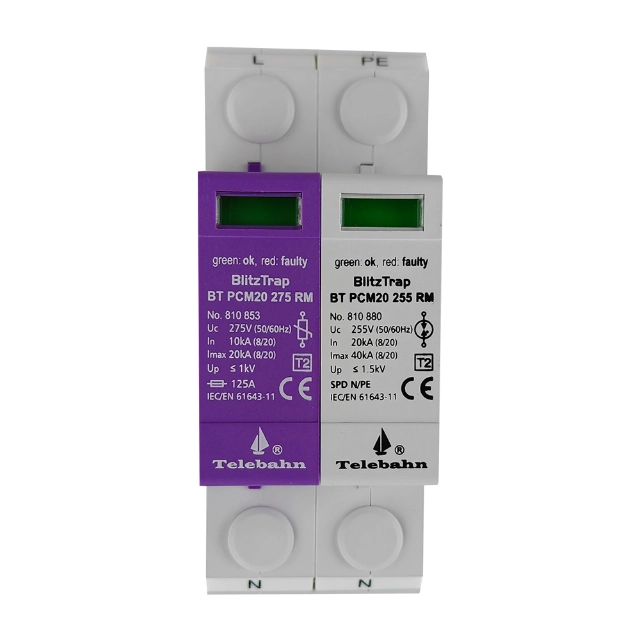

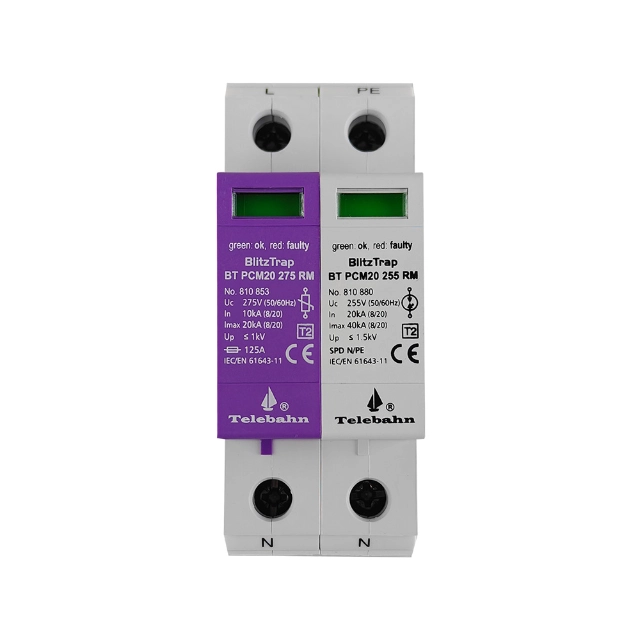

Surge Protector Type 2 -BT PCM20 275 RM/1+N
-
Type
BT PCM20 275 RM/1+N
-
Art.-No.
810 869
-
Features

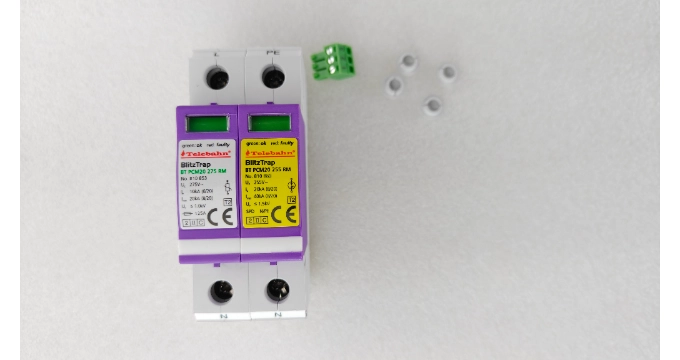

1. Pluggable module, easy for installation and maintenance.
2. Consist of High Energy MOV + High Energy GDT and thermal disconnection devices.
3. High discharge capacity, quick response.
4. Double thermal disconnector devices, providing more reliable protection.
5. Green window will change to red when fault occurs and also provide remote alarm control at the same time.
6. Power system frequency: 50/60 Hz.
7. Suitable for use in single phase 220V-240V AC systems.
8. Suitable for TT/ TN installations.
Sub-Distribution Boards
Single Phase, TN/TT
High Energy MOV+ High Energy GDT
In=10/20kA(8/20μs)
Imax=20/40kA(8/20μs)
Surge protector type 2 is installed at the main distribution board to guard electrical systems against transient overvoltages from indirect lightning strikes and switching surges. It acts as the second line of defense in a multi-stage protection system, following Type 1 devices. Ideal for residential, commercial, and industrial settings, it supports various power configurations including single-phase and three-phase systems. Designed to meet IEC 61643-11 standards, it offers reliable protection, thermal safety features, and optional remote signaling.
Features
1. SPD Type 2 (Class II): Designed to handle residual surges from Type 1 devices and switching operations.2. Installed at Distribution Level: Mounted in main or sub-distribution panels to protect downstream circuits.
3. Medium Discharge Capacity: Effectively manages surge currents typically caused by indirect lightning and grid disturbances.
4. Multi-Pole Configuration: Available in single-phase, three-phase, or "3+1" setups for various power systems.
5. Thermal Disconnection Mechanism: Includes built-in thermal protection to safely disconnect during fault conditions.
6. Visual Status Indicator: Provides clear indication of device status for easy maintenance and monitoring.
7. Optional Remote Signaling: Enables integration with building management or alarm systems for remote fault alerts.
8. Standards-Compliant Design: Manufactured in accordance with IEC 61643-11 and other relevant surge protection standards.
Advantages
1. Intermediate Surge Protection: Acts as a crucial second line of defense after Type 1 protection, managing residual surges.2. Protects Electrical Infrastructure: Shields distribution panels, wiring, and connected devices from transient overvoltages.
3. Reduces Equipment Downtime: Prevents surge-related failures, helping maintain productivity in homes, offices, and industries.
4. Increases Safety: Minimizes risk of fire, shock, or damage caused by electrical surges in high-energy environments.
5. Enhances Equipment Lifespan: Prevents wear from frequent voltage spikes, extending the life of electrical and electronic devices.
6. Easy Integration: Fits seamlessly into main and sub-distribution boards for efficient protection without system redesign.
Applications
1. Main Distribution Boards: Installed after the main circuit breaker to protect building-wide electrical systems.2. Residential Homes: Shields appliances, smart home systems, and consumer electronics from power surges.
3. Commercial Buildings: Protects HVAC, elevators, lighting, and office equipment from transient overvoltages.
4. Industrial Facilities: Safeguards machinery, motors, PLCs, and control systems from internal and external surges.
5. Hospitals and Medical Centers: Ensures stable power for sensitive medical devices and life-saving equipment.
6. Schools and Universities: Prevents surge damage to IT infrastructure, lab equipment, and classroom technology.
7. Data Centers and Server Rooms: Maintains uptime and protects critical servers and networking hardware from surges.
Technical Data
