Reliable and Affordable T2 Surge Protective Device

The AC T1+T2 Surge Protective Device is the best protection for your power systems. Combining T1 and T2 surge protection, it is intended for energy surges in units of lightning discharge, power failure, and other transverse voltage fluctuations. Because of the rapid rechargeability and high discharge turn, this battery will always safeguard your electrical appliances most effectively. This gadget promises protection and reliability in industrial and commercial use and settings, as well as in homes.

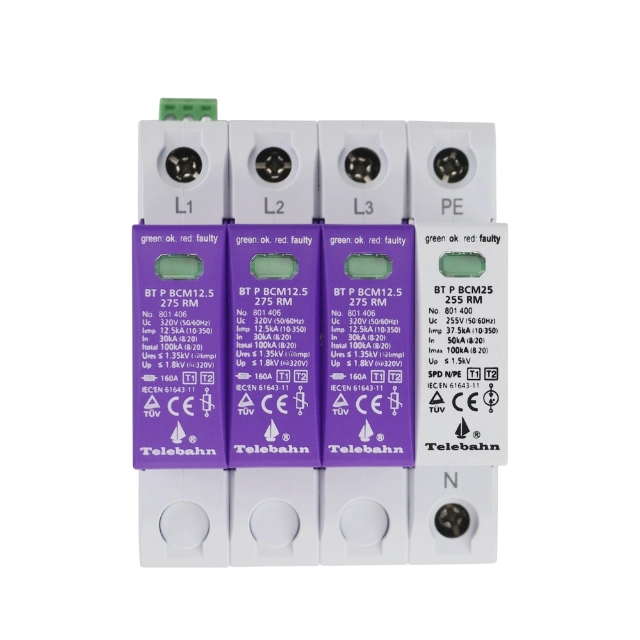

3 Phase Surge Protector -BT P BCM12.5 275 RM/3+N

BT P BCM12.5 275 RM/3+N 801 432 1. 10/350us 12.5kA, 8/20us 30-65kA for three phase 220V-240V AC TT/TN-S(“3+1” circuit)system. 2. Consist of MOV+GDT and thermal disconnection device. 3. High discharge capacity, quick response, pluggable. 4. Mode of protection:L-N/N-PE. 5. Multifunctional connection for conductors and busbars. 6. Green window will change to red when fault and also provide remote alarm control at the same time.

AC T1+T2 Surge Protective Device

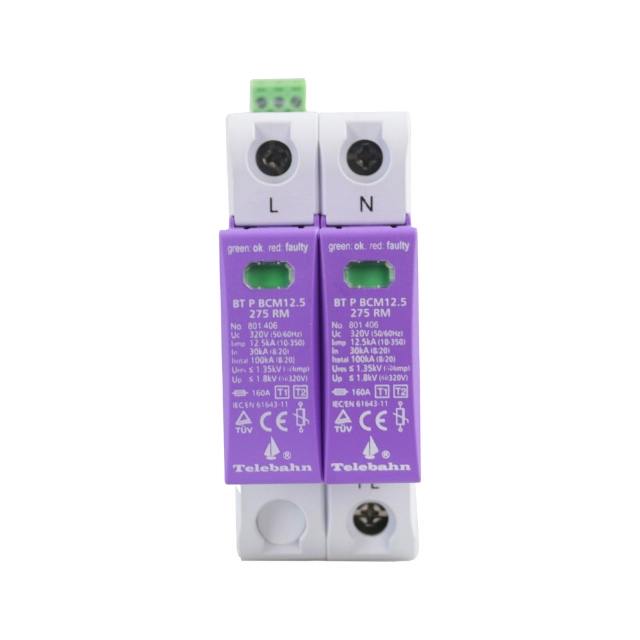

Overvoltage Protection Devices -BT P BCM12.5 275 RM/2P

BT P BCM12.5 275 RM/2P 801412 1. Pluggable module, for single-phase TN( “2+0” circuit) system. 2. High discharge capacity, quick response. 3. Double thermal disconnector devices, providing more reliable protection. 4. Green windows will change to red when fault and also provide remote alarm control at the same time. 5. BT P BCM12.5 275 RM/2P has passed TUV CB CE RoHS certificate. 6. Mode of protection：L/N-PE. 7. Recommended backup fuse / MCB 63A.

AC T1+T2 Surge Protective Device

Transient Voltage Surge Suppressor -BT P BCM12.5 275 RM/1+N

BT P BCM12.5 275 RM/1+N 801 427 1. 10/350us 12.5kA, 8/20us 30-65kA single phase TT/TN(1+1 circuit）system. 2. Consist of varistor and thermal disconnection device. 3. High discharge capacity, quick response, pluggable. 4. Mode of protection:L-N/N-PE. 5. Multifunctional connection for conductors and busbars. 6. Green window will change to red when fault and also provide remote alarm control at the same time.

AC T1+T2 Surge Protective Device

Surge Protection Equipment -BT BCM30 275 RM/3+N

BT BCM30 275 RM/3+N 807332 1. Combined lightning current arrester for three-phase TT/TN-S system ( “3+1” circuit) . 2. Single-pole surge protection lightning impulse current to Iimp 30kA (L-N) / 100kA (N-PE). 3. Double thermal disconnector devices, providing more reliable protection. 4. Multifunctional connection for conductors and busbar. 5. Double terminal for parallel or series (V-shape) connection. 6. Windows will change to red when fault and also provide remote alarm control at the same time. 7. Suitable for use in three phase: 220V/380V(50/60 Hz), 230V/400V(50/60 Hz) AC systems. 8. Suitable for TT/ TN-S installations.

AC T1+T2 Surge Protective Device

Surge Protector Devices -BT P BCM12.5 275 RM/4P

BT P BCM12.5 275 RM/4P 801 422 1. Pluggable module, for three-phase TNC-S and TN-S ( “4+0” circuit) system. 2. High discharge capacity, quick response. 3. Double thermal disconnector devices, providing more reliable protection. 4. Green windows will change to red when fault and also provide remote alarm control at the same time. 5. BT P BCM12.5 275 RM/4P has passed TUV CB CE RoHS certificate. 6. Suitable for use in three phase: 220V/380V(50/60 Hz), 240V/415V(50Hz), 230V/400V(50/60 Hz) AC systems. 7. Recommended backup fuse / MCB 63A.

AC T1+T2 Surge Protective Device

3 Phase Surge Protection -BT P BCM 25 RM/4P

BT P BCM 25 RM/4P 800914 1. Combined lightning current arrester for 3-phase TN-S ( “4+0” circuit) system, Pluggable 2. Adopt hermetical High Energy Gas Discharge Tube(GDT) technology, high follow current extinguishing capacity. 3. Extremely low voltage protection level. 4. Double thermal disconnector devices, providing more reliable protection. 5. Green window will change to red when fault occurs, also provide remote alarm terminal at the same time.

AC T1+T2 Surge Protective Device

Product Range

Explore our Power Supply System SPD solutions for all your surge protection needs.

AC SPD Class I and II: Offer formats of security in the form of two layers.

SPD Boxes: Solutions that are local and less centralized to accommodate surge volumes.

Photovoltaic DC SPD: Specific purpose controller for a solar power system.

Gas-Type AC SPD: Consequently, it becomes possible to guarantee the very highest level of protection on board using the gas discharge technology.

Extension SPD: UV shield that is easy to wear and adapt, thus may complement and apply to various lifestyles.

Wind Turbine SPD: In addition, integrated particularly for renewable power plants —
IT, Network, and Security SPD: Of importance is in safeguarding principal systems.

The Bottom Line

The AC T1+T2 Surge Protective Device is the perfect product to shield the power systems of any person. Whether for residential, commercial, or industrial use it enables continuity and system in operations and safeguards valuable properties.
