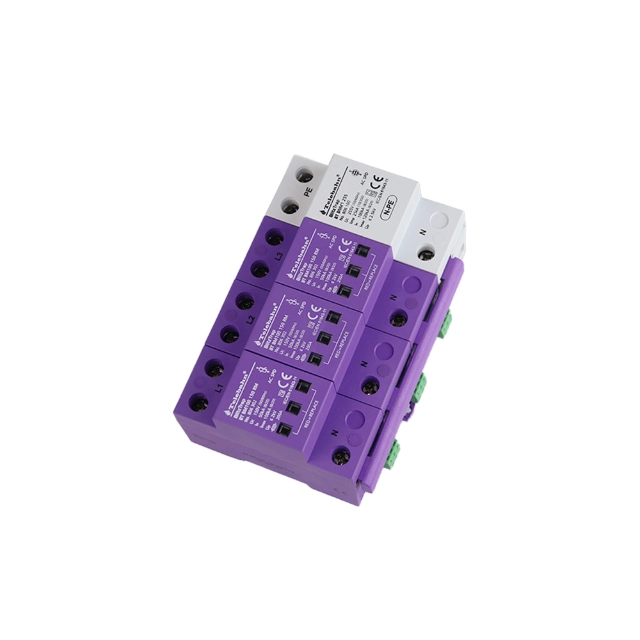

Transient Voltage Surge Protector -BT BM100 150 RM/3+N
-
Type
BT BM100 150 RM/3+N
-
Art.-No.
806362
-
Features
1. Three-phase surge protection for TT/TN-S system.
2. High discharge capacity, quick response.
3. Double thermal disconnection devices, provide more reliable protection.
4. Multifunctional connection for conductors and red copper busbars.
5. Windows will change to red when fault occurs, also provide remote alarm terminal at the same time.
6. Mode of protection: L-N/N-PE.
High Energy MOV+ High Energy GDT
In=50kA/100kA(8/20μs), High Surge Currents:
Imax=100kA/120kA(8/20μs)
Transient Voltage Surge Protector helps control fast, short-duration overvoltage events before they interfere with sensitive electrical and electronic equipment. It responds to disturbances created by switching loads, inductive equipment, utility fluctuations, and nearby lightning activity, keeping damaging voltage peaks away from protected circuits. Suitable for both distribution-level and equipment-level protection, the device supports more stable operation of controls, power supplies, communication equipment, and electronic systems where even brief voltage disturbances can lead to resets, component stress, or unexpected failure.
Features
1. Fast Transient Suppression: Responds quickly to short-duration voltage spikes before they develop into damaging stress on connected equipment.2. Broad Disturbance Coverage: Helps control transients associated with switching operations, inductive loads, grid disturbances, and lightning effects.
3. Low-Impact Parallel Connection: Connects across the protected circuit without interfering with normal power delivery during standard operation.
4. Sensitive Equipment Protection: Optimized for electrical and electronic loads that are vulnerable to short, high-voltage disturbances.
5. Flexible Installation Position: Can be applied at distribution panels, control cabinets, or close to critical equipment depending on protection requirements.
6. Coordinated Protection Capability: Can form part of a multi-stage surge protection strategy across a complete electrical installation.
Advantages
1. Reduces Nuisance Equipment Failures: Helps prevent unexplained resets, communication errors, and electronic faults caused by transient voltage events.2. Preserves Sensitive Electronics: Limits repeated electrical stress on control boards, power supplies, processors, and interface circuits.
3. Supports Better Power Quality: Provides an additional layer of protection against brief disturbances that may not trigger conventional circuit protection.
4. Improves System Availability: More stable electrical conditions help critical equipment remain operational during transient events.
5. Helps Extend Component Life: Reducing repeated overvoltage exposure can slow degradation of sensitive electronic components.
6. Adapts to Different Protection Levels: Suitable for both upstream electrical protection and more localized protection near vulnerable equipment.
Applications
1. Industrial Control Panels: Protects PLCs, control power supplies, relays, and electronic automation equipment.2. Building Automation Systems: Used with controllers, sensors, access systems, and intelligent building equipment.
3. Communication Equipment: Suitable for networking hardware, communication cabinets, and signal-processing systems.
4. Commercial Electronics: Protects office equipment, point-of-sale systems, security devices, and other sensitive loads.
5. Process Instrumentation: Applied to monitoring, measurement, and control circuits where stable electrical conditions are important.
6. Equipment Power Inputs: Installed near sensitive machinery or electronic devices requiring localized transient protection.
Technical Data
