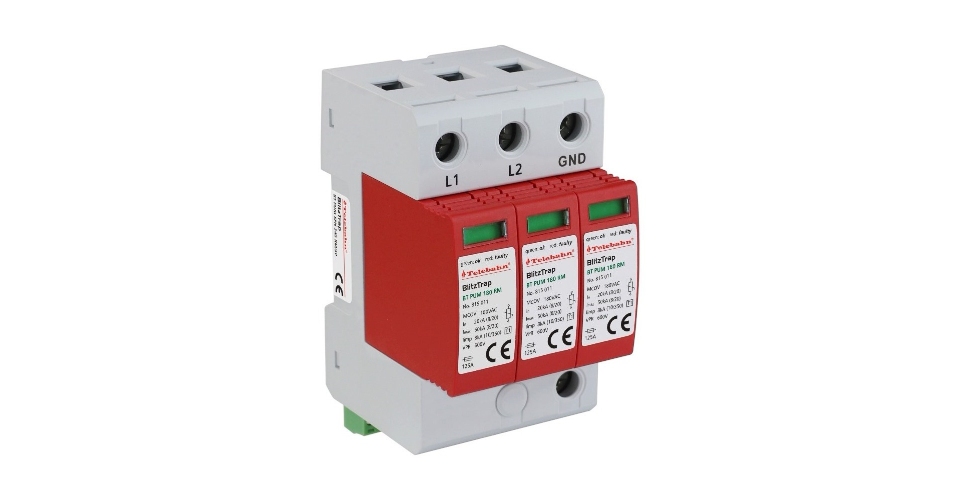

TVSS Surge Protector -BT PUM SPN 240 RM/3P
-
Type
BT PUM SPN 240 RM/3P
-
Art.-No.
815051
-
Features
1. Combined module SPD for Split Phase electrical systems with N wire protected(3W+G circuit). 2. Max. Discharge current (Imax) up to 50kA (8/20μs). 3. Short-circuit current rating (SCCR) 200kA. 4. Double thermal disconnector device, providing more reliable protection. 5. Green window will change when fault and also provide remote alarm control at the same time.
For split phase electrical systems(3W+G circuit)
High Energy MOV
In=20kA(8/20μs)
Imax=50kA(8/20μs)
This TVSS Surge Protector -BT PUM SPN 240 RM/3P works efficiently in single-phase 240V power applications. The equipment defends electrical infrastructure by protecting systems from power connections and lightning events while offering protection against voltage spikes and transients. The device's structures are both adaptable to future updates and straightforward for maintenance work. The BT component guards electrical infrastructure from interference while SPN technology protects all phase and neutral conductor systems. Within the 3P installation, all live ground and neutral connections Whole house surge protector provides coverage for both residential areas as well as industrial sites.
TVSS Surge Protector -BT PUM SPN 240 RM/3P
The TVSS Surge Protector -BT PUM SPN 240 RM/3P is a high-performance surge protection device designed to protect electrical equipment from voltage spikes, transients, and surges. This device meets stringent safety standards, offering robust protection for both industrial and residential applications.
Product Features
- BT (Electrical Isolation): Enhances system maintainability by eliminating unwanted electrical disruptions between circuits.
- PUM (Surge Protection Module): Absorbs damaging voltage spikes with quick reaction capabilities to protect delicate equipment.
- 240V Compatibility: Works efficiently within 240V systems for various applications.
- RM (Modular Design): Modular structure enables easy maintenance and ongoing system upgrades.
- 3P (Three-Pole Protection): Provides comprehensive protection by safeguarding ground, live, and neutral connections.
Technical Specifications
- Voltage Rating: Suitable for 240V electrical systems.
- Surge Current Capacity: Handles powerful surge currents and harmful disturbances to protect valuable equipment.
- Response Time: Delivers instantaneous protection for every connected device.
- Maximum Continuous Voltage: Operates reliably across the entire voltage spectrum under standard conditions.
- Temperature Range: Functions seamlessly across a wide range of environmental conditions.
- Rated Power: Operates across multiple power levels within predefined performance boundaries.
Applications
- Industrial Equipment Protection: Shields machinery systems and high-voltage networks from destructive transient surges.
- Residential and Commercial Use: Protects household devices, office equipment, and systems such as heating, ventilation, and air conditioning (HVAC).
- Power Distribution Systems: Ensures sustainable operation without degradation of transmission systems.
Technical Data
Product Showcase
