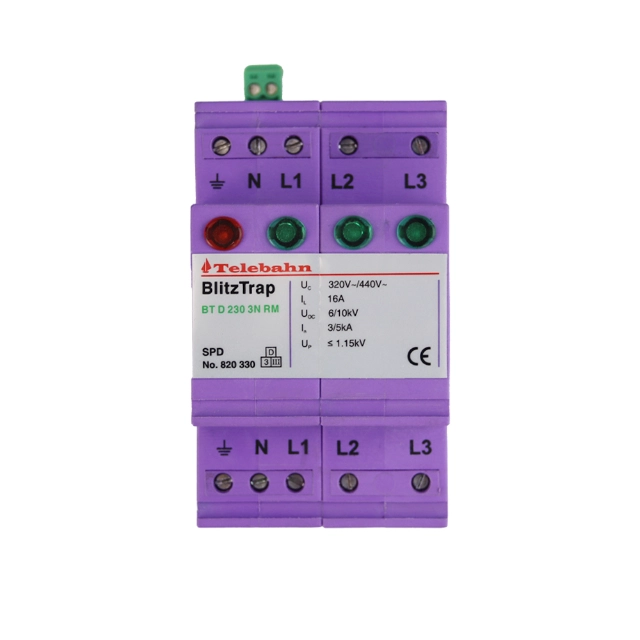

TVSS Surge -BT D 230 3N RM
This TVSS Surge BT D 230 3N RM(820330) serves to protect low voltage equipment from surge damage as it functions at LPZ 1-2 or higher. This SPD applies as a modular Class III (Class D) device for three phase power systems in SPD modular configuration. This product meets the requirements of IEC 61643-11/ EN 61643-11 / GB / T 18802.11 specifications.
-
Type
BT D 230 3N RM
-
Art.-No.
820330
-
Features
1. Green light indicates normal and red indicates fault. 2. Three phase protection and disconnector. 3.Remote signalling connector for fault indication
Inquiry
Download Datasheet
Application:
Protecting eletronic equipment from surge damages.
Protecting eletronic equipment from surge damages.
System Type:
Three phase power supply system
Three phase power supply system
Protection Elements:
High Energy MOV + High Energy GDT
High Energy MOV + High Energy GDT
T3 Surge Protector
Uoc：10kV
TVSS Surge - BT D 230 3N RM is a durable high-performance surge protection device. It safeguards 230V three-phase electrical systems. The device protects important equipment against overvoltage through its capability to secure systems from both lightning strikes and power grid faults and electrical disturbances. Such high surge capacity and rapid response time ensure dependable protection which helps maintain the operational stability of critical systems for longer durations.
TVSS Surge - BT D 230 3N RM
The BT D 230 3N RM TVSS Surge Protector protects three-phase 230V electrical systems by offering defense against lightning strikes as well as power disturbances and switching operations. Energetic and delicate equipment remains protected from damage through the TVSS Surge BT D 230 3N RM's ability to safely discharge excessive voltage into the ground. This protective device features exceptional design qualities and rapid response capabilities along with high surge current tolerance.
Key Features
- The product serves three-phase electrical systems with a 230V specification.
- High Surge Capacity: Capable of handling large surge currents for comprehensive protection.
- The device provides instantaneous responses to voltage spikes which protects the equipment that demands protection.
- Durable Construction: Built to withstand harsh environmental and electrical conditions.
- Easy Integration: DIN rail mountable for seamless installation in distribution panels.
Applications
- Industrial Power Systems
- Commercial Electrical Infrastructure
- Residential Complexes
- Control Panels and Distribution Boards
Surge (Overvoltage)
- The sudden increase in voltage during a short period represents this phenomenon.
- The occurrence of lightning strikes and power grid faults together with electromagnetic interference results in surge formation.
- Excessive voltage exposure leads to defects and destruction of electronic devices.
- Equipment protection occurs via this mechanism to defend against overvoltage attacks which could potentially harm devices.
- An overvoltage protector stabilizes power flow and increases the operational period of electronic products.
- Serves as an essential component for the protection and safety of electronic equipment.
Technical Data
Product Showcase
BT D 230 3N RM
Circuit
Dimension
Series Connection
Parallel Connection
