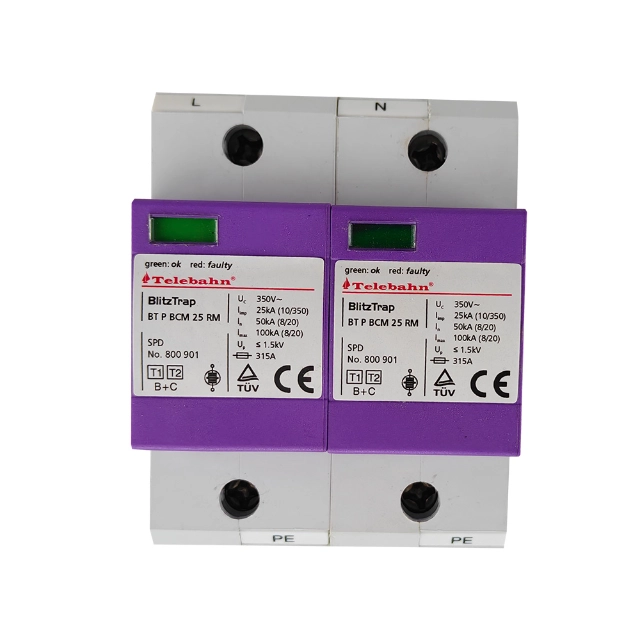

Type 1 Surge Protective Devices -BT P BCM 25 RM/2P

Type 1 Surge Protective Devices BT P BCM 25 RM/2P(800916) is designed to protect low voltage devices from lightning and surge damages and remote terminal is optional, Applied in modular Hybrid SPD Class I + Class II for single phase TN(“2+0” circuit) power supply system, mainly used in power supply system such as power distribution-room,distribution-cabinet and other important power supply system.Designed according to IEC 61643-11 ; EN 61643-11; GB /T 18802.11.

  • Type

    BT P BCM 25 RM/2P

  • Art.-No.

    800913

  • Features

    1. Single phase lightning current surge protection device for TN system, Pluggable.
    2. Adopt hermetical GDT technology, high follow current extinguishing capacity.
    3. Extremely low voltage protection level.
    4. Double thermal disconnector devices, providing more reliable protection.
    5. Green window will change to red when fault occurs, also provide remote alarm terminal at the same.
    6. Suitable for use in single phase 220V-240V AC systems Compatible .
    7. Crafted from selected flame-retardant enclosure and Utilizing advanced European technology to ensure complete and reliable safeguarding of electrical equipment.

Inquiry
Download Datasheet
Type 1 Surge Protective Devices
Location of Use:
Main Distribution Boards
System Type:
Single Phase, TN
Modules:
2 Poles
Protection Elements:
High Energy GDT
High Surge Currents:
limp=25kA(10/350μs), Imax=100kA(8/20μs)

Type 1 Surge Protective Devices are designed for installation at the main power entry point to protect electrical systems from high-energy lightning currents and external surges. These devices divert large surge currents safely to ground before they enter the internal electrical network. Commonly used in residential, commercial, and industrial installations, they provide the first line of defense against lightning-induced overvoltage. By managing extreme surge energy at the source, Type 1 Surge Protective Devices reduce system stress, improve power stability, and protect downstream equipment, ensuring long-term reliability and safe operation of electrical infrastructure.

Features

1. Power Entry Point Protection: Installed at the main distribution board to intercept high-energy surges before they enter internal circuits and equipment.
2. Lightning Current Handling Capability: Designed to withstand and safely discharge direct or indirect lightning currents without damaging the electrical system.
3. High Surge Current Capacity: Supports large impulse currents, making it suitable for environments exposed to severe external electrical disturbances.
4. Direct Grounding Coordination: Works closely with grounding systems to ensure efficient and safe dissipation of surge energy.
5. Continuous Passive Operation: Provides automatic protection without requiring manual intervention or system adjustments.
6. Multi-Environment Compatibility: Suitable for residential, commercial, and industrial installations with varying power configurations.
BT P BCM 25 RM/2P Dimension

Advantages

1. First-Line Surge Defense: Stops high-energy surges at the entry point, preventing them from propagating through the electrical system.
2. Reduced System-Wide Damage Risk: Minimizes impact on downstream equipment by handling large surge currents at the source.
3. Improved Electrical Infrastructure Stability: Maintains balanced voltage conditions across the entire power system.
4. Extended Equipment Protection Chain: Works with downstream Type 2 and Type 3 devices to create a layered surge protection system.
5. Lower Maintenance and Repair Costs: Reduces frequency of equipment failure caused by lightning or external surge events.
6. Increased Safety for Installations: Helps prevent electrical hazards and improves overall system safety under extreme conditions.
BT P BCM 25 RM/2P Circuit

Applications

1. Residential Main Distribution Panels: Installed at home power entry points to provide primary lightning surge protection.
2. Commercial Buildings: Protects office buildings, retail centers, and public facilities from external surge events.
3. Industrial Facilities: Safeguards heavy equipment and power systems exposed to high-energy surges and lightning risks.
4. Utility and Power Networks: Used in substations and distribution systems to handle lightning currents at grid entry points.
5. Renewable Energy Installations: Protects solar PV systems and wind power setups from lightning-induced surges.
6. Data Centers and Critical Infrastructure: Ensures reliable power supply and protects sensitive IT equipment from external surges.
7. Lightning-Prone Areas: Ideal for regions with frequent thunderstorms and high lightning activity.
BT P BCM 25 RM/2P Installation

Installation & Maintenance

1. Installation at Power Entry: Install directly at the main distribution board to ensure effective interception of incoming surge currents.
2. Proper Grounding Connection: Ensure low-resistance grounding to safely discharge lightning currents and maintain device performance.
3. Secure Electrical Integration: Mount securely within panels and verify correct phase and neutral connections during installation.
4. Regular Inspection: Periodically check device condition and connection integrity to ensure continuous protection capability.
5. Environmental Suitability: Install in protected environments, avoiding excessive moisture, dust, or extreme temperatures.
6. Replacement After Major Surge Events: Evaluate and replace devices after heavy lightning exposure to maintain optimal protection.
7. System Coordination Check: Ensure compatibility with downstream surge protection devices for complete layered protection.
Surge Protective Device

Technical Data

Product Showcase

Surge Protection Device
BT BNM 100 RM
Surge Protection
BT P BCM 25 RM/2P
Surge Arrester
BT P BCM 25 RM/3P
Surge Suppressor
BT P BCM 25 RM/4P
Lightning Protection
BT P BCM 25 RM/1+N-S
Surge Protector Device
BT P BCM 25 RM/2+N-S
Transient Voltage Surge Suppressor
BT P BCM 25 RM/3+N-S
