Whole Home Lightning Protection -BT P BCM 275 RM/2P
  • Overview
  • Features
  • Datasheet
  • Showcase
  • Inquiry

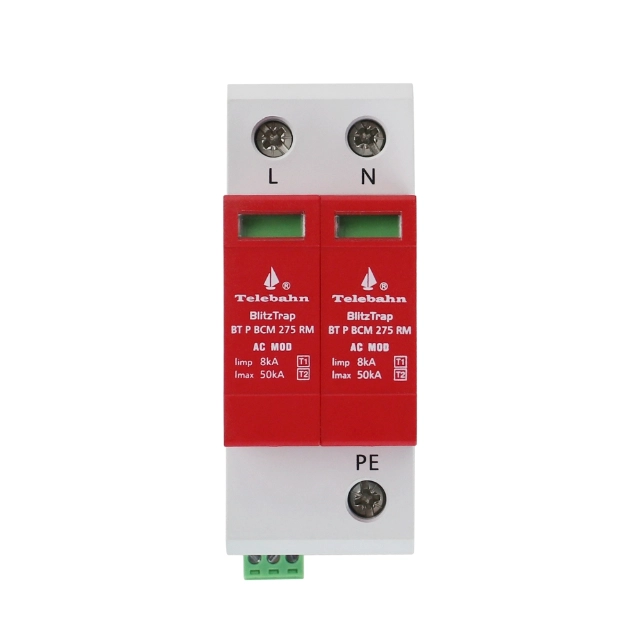

Whole Home Lightning Protection -BT P BCM 275 RM/2P

Whole Home Lightning Protection BT P BCM 275 RM/2P (801102) is designed for installation in LPZ 0A–2 or higher zones, providing reliable protection for low-voltage equipment against power surges, with an optional remote terminal feature. It is a pluggable SPD Class I + Class II device, ideal for single-phase TN ("2+0" circuit) power supply systems. The device meets IEC 61643-11:2011, EN 61643-11:2012, and GB/T 18802.11-2020 standards, ensuring superior surge protection and enhanced safety for residential electrical systems.

  • Type

    BT P BCM 275 RM/2P

  • Art.-No.

    801102

  • Features

    1. Pluggable module, easy for installation and maintenance.
    2. Double thermal disconnector devices, providing more reliable protection.
    3. Max. lightning discharge current up to 8kA (10/350μs)and High discharge capacity, quick response.
    4. Green window will change when fault and also provide remote alarm control at the same time.
    5. Mode of protection:L-PE; N-PE.
    6. Suitable for TN installations.
    7. Crafted from selected flame-retardant enclosure and Utilizing advanced European technology to ensure complete and reliable safeguarding of electrical equipment.

Inquiry
Download Datasheet
Whole Home Lightning Protection

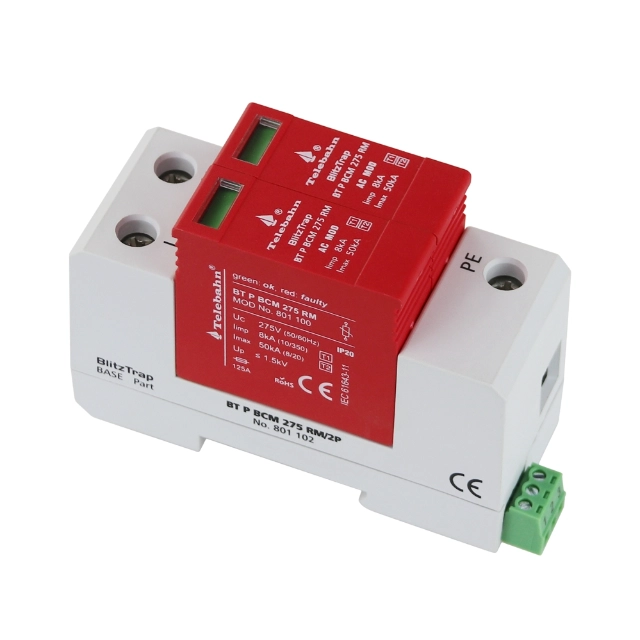

Surge Protector
Surge Protective Device
LMode of protection: L-PE; N-PE. System: TN
Modules: 2P
Surge Ratings: Iimp=8kA(10/350μs), In=25kA(8/20μs)
High Surge Currents: Imax=50kA(8/20μs)
Housing: Pluggable Design

Whole Home Lightning Protection provides comprehensive protection for your entire household, guarding against the destructive force of lightning strikes and power surges. By intercepting lightning strikes before they reach your home’s electrical system, this system ensures that both your property and sensitive electronic equipment are safe from the catastrophic damage that can be caused by electrical surges. Installed across key points of entry and distribution in your home’s electrical grid, a whole-home lightning protection system offers peace of mind during storms, preventing fire, electrical shock, and costly repairs.

Features

1. Efficient Surge Energy Diversion: Channels the energy from lightning strikes directly to the ground, preventing surge damage.
2. High-Quality Materials: Uses copper or aluminum components for fast and effective energy dissipation, ensuring maximum protection.
3. Integrated Surge Protection: Combines lightning protection with surge suppressors to protect devices like TVs, computers, and HVAC systems.
4. Lightning Rods and Grounding System: Includes strategically placed air terminals, down conductors, and grounding rods to ensure comprehensive coverage.
5. Fast Response Time: Activates almost instantaneously, redirecting dangerous electrical energy before it can cause damage.
6. Compliance with Industry Standards: Meets international standards such as IEC 62305 and UL 96A for lightning protection systems.
Surge Protection Device

Advantages

1. Complete Household Safety: Protects not just the building structure but also every electrical device and appliance in the home.
2. Fire Prevention: Reduces the risk of fires caused by electrical surges or direct lightning strikes.
3. Prevents Equipment Damage: Safeguards expensive electronics and appliances from lightning-induced power surges.
4. Increases Property Value: Enhances the safety and reliability of the home, making it more attractive to potential buyers.
5. Long-Term Reliability: Requires minimal maintenance and continues to protect your home for years after installation.
6. Cost-Effective Investment: A one-time installation that prevents costly repairs or replacements due to lightning or surge damage.
7. Peace of Mind: Provides homeowners with confidence, knowing their property and electronics are safe during electrical storms.
Surge Protection

Applications

1. Residential Homes: Ideal for protecting single-family homes, large estates, and multi-story buildings.
2. Smart Homes: Ensures the safety of smart devices, home automation systems, and connected electronics from lightning strikes.
3. Vacation Homes: Essential for homes located in areas with frequent storms, providing year-round protection for seasonal use.
4. Rural and Remote Properties: Protects homes in lightning-prone regions or those located far from city power infrastructure.
5. High-Risk Areas: Perfect for areas with frequent thunderstorms, protecting homes in regions with a high frequency of lightning strikes.
6. Coastal Homes: Ideal for homes in coastal areas where lightning strikes are more common due to atmospheric conditions.
BT P BCM 275 RM/2P Dimension

Technical Data

Product Showcase

Surge Arrester
Surge Suppressor
Lightning Protection
