Whole House Surge Protection -BT P BCM 320 RM/2P

Whole House Surge Protection BT P BCM 320 RM/2P（801302）designed for installation in LPZ 0A-2 or higher zones, this surge protection device safeguards low-voltage equipment from power surges and remote terminal is optional. Application: Pluggable SPD Class I + Class II for single phase TN("2+0" circuit) various power supply systems. Compliance Standards: IEC 61643-11:2011;EN 61643-11:2012;GB/T 18802.11-2020.

  • Type

    BT P BCM 320 RM/2P

  • Art.-No.

    801302

  • Features

    1. Pluggable module, easy for installation and maintenance.
    2. Double thermal disconnector devices, providing more reliable protection.
    3. Max. lightning discharge current up to 8kA(10/350μs)and High discharge capacity, quick response.
    4. Green window will change when fault and also provide remote alarm control at the same time.
    5. Mode of protection: L-PE; N-PE.
    6. Suitable for TN installations.
    7. Crafted from selected flame-retardant enclosure and Utilizing advanced European technology to ensure complete and reliable safeguarding of electrical equipment.

Inquiry
Download Datasheet

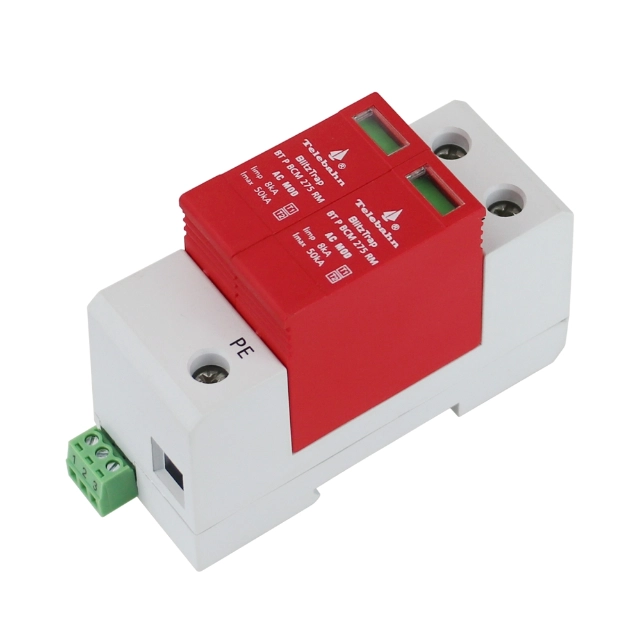

Whole House Surge Protection

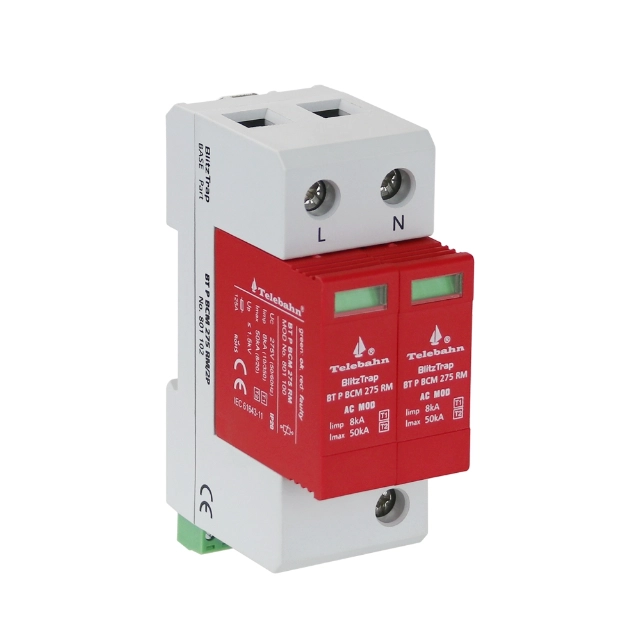

Surge Protection Device
LMode of protection: L-PE; N-PE. System: TN
Modules: 2P 150V/275V/320V/385V AC Uc
Surge Ratings: Iimp=8kA(10/350μs), In=25kA(8/20μs)
High Surge Currents: Imax=50kA(8/20μs)
Housing: Pluggable Design

Whole House Surge Protection provides a first line of defense against sudden voltage spikes that can disrupt or damage electrical systems. Installed at the main electrical panel, it helps manage transient surges caused by lightning, utility switching, or internal load changes. Instead of protecting devices individually, this solution works at the system level, supporting long-term electrical stability. By reducing cumulative stress on connected equipment, Whole House Surge Protection contributes to improved operational reliability and fewer unexpected interruptions across residential and light commercial environments.

Features

1. Service-Entrance Installation: Built for placement at the main electrical panel to intercept surges at the entry point.
2. Whole-Circuit Coverage: Extends protection across all downstream branch circuits connected to the panel.
3. Fast Surge Response Path: Provides a rapid diversion route for transient overvoltage events.
4. Multi-Mode Surge Handling: Supports common surge paths found in real-world wiring conditions.
5. Status Indication Interface: Offers clear visual feedback to help confirm protection is active.
6. Compact Panel-Friendly Form: Designed to fit typical electrical enclosures without complex layout changes.
7. Durable Internal Components: Uses robust protection elements intended for repeated surge exposure.
8. System-Compatible Design: Works alongside breakers and grounding systems as part of a coordinated protection scheme.
Surge Protection Device

Advantages

1. Prevents Cascading Damage: Helps stop surges from propagating to multiple devices across the building.
2. Extends Equipment Service Life: Reduces cumulative electrical stress that can accelerate aging of sensitive electronics.
3. Fewer Unexpected Outages: Lowers the risk of sudden shutdowns caused by transient power disturbances.
4. Reduced Replacement Frequency: Supports fewer surge-related repairs by limiting repeated overvoltage exposure.
5. Better System Uptime: Improves operational continuity for connected loads and essential circuits.
6. Cleaner Power for Electronics: Helps stabilize electrical conditions that affect controllers, smart devices, and AV systems.
7. Simplified Protection Strategy: Centralizes surge defense, reducing the need for multiple device-by-device solutions.
8. Improved Risk Management: Adds a protective layer that supports safer electrical operation in surge-prone areas.
Surge Protection

Applications

1. Single-Family Homes: Protects household circuits feeding appliances, lighting, and entertainment systems.
2. Smart Home Installations: Supports stable operation for hubs, sensors, routers, and connected controllers.
3. Home Offices and Studios: Helps safeguard computers, networking gear, and productivity electronics.
4. Small Retail and Service Spaces: Fits shops and clinics using POS systems, displays, and critical electronics.
5. Light Commercial Buildings: Suitable for offices and facilities with centralized panels and multiple circuits.
6. Properties in Lightning-Prone Regions: Adds a protective layer where thunderstorms and induced surges are common.
7. Areas with Utility Switching Events: Useful in locations experiencing grid reconfiguration or frequent power transitions.
8. Mixed-Use Buildings: Provides centralized protection for combined residential and commercial loads.
BT P BCM 275 RM/2P Dimension
