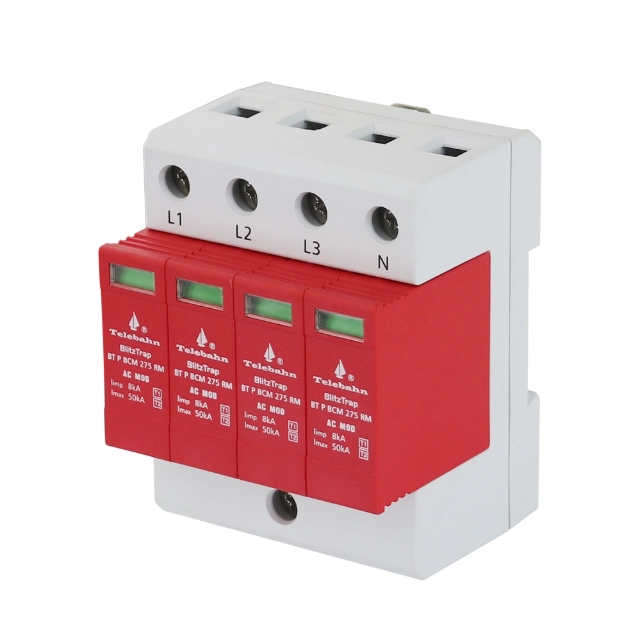

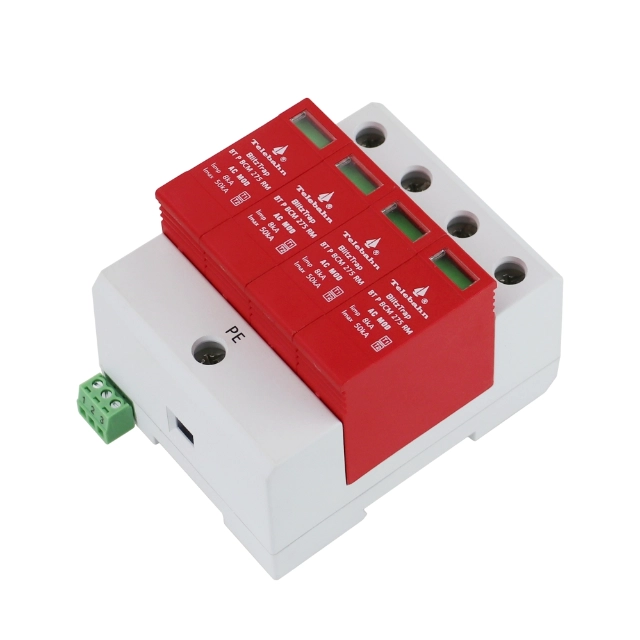

Whole House Surge Protector Cost -BT P BCM 150 RM/4P

Whole House Surge Protector Cost BT P BCM 150 RM/4P（801124）designed for installation in LPZ 0A-2 or higher zones, this surge protection device safeguards low-voltage equipment from power surges and remote terminal is optional. Application: Pluggable SPD Class I + Class II for three phase TN-S("4+0" circuit) various power supply systems. Compliance Standards:IEC 61643-11:2011;EN 61643-11:2012;GB/T 18802.11-2020.

  • Type

    BT P BCM 150 RM/4P

  • Art.-No.

    801124

  • Features

    1. Pluggable module, easy for installation and maintenance.
    2. High discharge capacity, quick response.
    3. Double thermal disconnector devices, providing more reliable protection.
    4. Green window will change when fault and also provide remote alarm control at the same time.
    5. Mode of protection:L-PE/N-PE and Suitable for TNC-S/TN-S installations.
    6. Crafted from selected flame-retardant enclosure and Utilizing advanced European technology to ensure complete and reliable safeguarding of electrical equipment.

Inquiry
Download Datasheet
Whole House Surge Protector Cost
SPD
LMode of protection: L-PE/N-PE System: TN-S
Modules: 4P Uc 150V/275V/320V/385V AC
Surge Ratings: Iimp=8kA(10/350μs), In=25kA(8/20μs)
High Surge Currents: Imax=50kA(8/20μs)
Housing: Pluggable Design/Red flame retardant material

Whole House Surge Protector Cost represents a surge protection solution designed with balanced pricing and practical household power coverage. The device limits incoming voltage surges at the main electrical entry point while supporting common residential load conditions. Its structure supports consistent performance without adding unnecessary expense to home electrical systems. By focusing on controlled material selection and practical surge handling capacity, it provides reliable protection for household circuits, appliances, and connected devices. This product suits residential environments where cost planning and electrical safety are both considered during power system setup or upgrades.

Features

1. Cost-Controlled Design Structure: Built with practical surge handling components to balance protection needs and overall cost.
2. Main Entry Surge Limiting: Controls voltage surges at the household power entry point before circuit distribution.
3. Residential Load Matching: Supports common home electrical loads without overspecification.
4. Stable Surge Handling Capacity: Manages repeated voltage events within defined household requirements.
5. Panel-Compatible Installation: Fits standard residential distribution panels without extra modification.
6. Continuous Protection Function: Maintains surge control during everyday household power use.
Amazon Surge Protector

Advantages

1. Predictable Budget Planning: Supports household power projects with clearer cost expectations.
2. Balanced Protection Coverage: Provides surge control suited to residential needs without excessive configuration.
3. Reduced Replacement Risk: Helps lower surge-related damage to home electronics and appliances.
4. Centralized Household Protection: Protects multiple circuits through a single installed device.
5. Long-Term Use Stability: Designed for consistent operation over extended residential use periods.
6. Simple Ownership Experience: Operates without frequent adjustments or added maintenance expense.
Surge Protector

Applications

1. Residential Power System Setup: Suitable for homes planning surge protection with budget awareness.
2. Electrical Upgrade Projects: Adds surge control during household wiring improvements.
3. Appliance Protection Planning: Supports protection for essential household equipment.
4. Smart Home Power Circuits: Helps maintain stable supply for connected devices.
5. Detached Houses and Villas: Matches independent residential electrical layouts.
6. Long-Term Home Occupancy: Fits homes seeking stable power protection over time.
Surge Protective Device

Technical Data
