Whole House Surge Suppressor -BT P BCM 150 RM/1+N

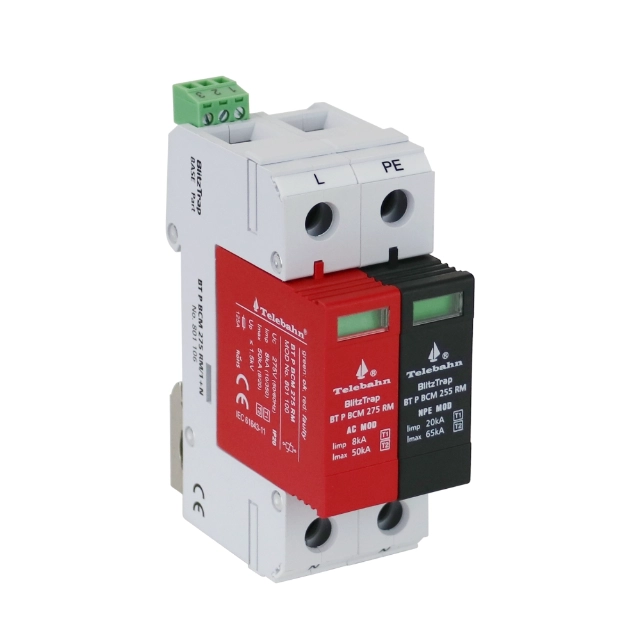

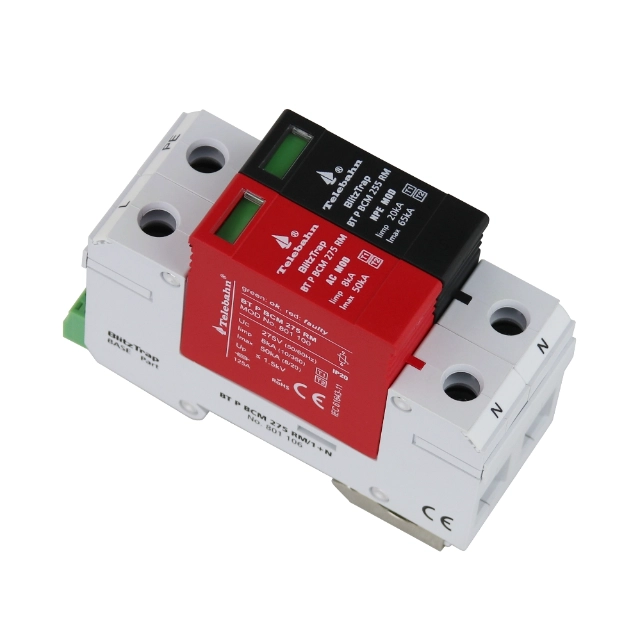

Whole House Surge Suppressor BT P BCM 150 RM/1+N (801126) is designed for installation in LPZ 0A–2 or higher zones, offering reliable protection for low-voltage equipment against power surges, with an optional remote terminal feature. It is a pluggable SPD Class I + Class II device, suitable for single-phase TN/TT ("1+1" circuit) power supply systems. The device complies with IEC 61643-11:2011, EN 61643-11:2012, and GB/T 18802.11-2020 standards, ensuring high-quality surge protection and enhanced system safety.

Type

BT P BCM 150 RM/1+N
Art.-No.

801126
Features

1. Pluggable module, easy for installation and maintenance.
2. Double thermal disconnector devices, providing more reliable protection.
3. Max. lightning discharge current up to 8kA 10/350 (L-N) and High discharge capacity, quick response.
4. Green window will change when fault and also provide remote alarm control at the same time.
5. Suitable for use in single phase AC systems compatible and Mode of protection:L-N; N-PE.
6. Crafted from selected flame-retardant enclosure and Utilizing advanced European technology to ensure complete and reliable safeguarding of electrical equipment.

Inquiry

Download Datasheet

Location of Use:
Main Distribution Boards

System Type:
Single Phase, 150V AC 1P+N

Protection Elements:
High Energy MOV+ High Energy GDT

Mode of protection: L-N, N-PE

Surge Ratings:
In=25kA/40kA(8/20μs), High Surge Currents:
Imax=50kA/65kA(8/20μs)

Whole House Surge Suppressor is an essential investment for protecting your home’s electrical system from harmful power surges caused by lightning, utility fluctuations, or equipment malfunctions. Installed at the point where power enters your home, it prevents high-voltage spikes from reaching and damaging sensitive electronics, appliances, and wiring. By diverting excess energy safely into the ground, a whole-house surge suppressor helps preserve the integrity of your home’s electrical system, reducing repair costs, downtime, and the risk of electrical fires. It provides long-term protection, ensuring that all electrical devices, from televisions to refrigerators, remain safe from unpredictable power surges.

Features

1. Full-System Protection: Protects all electrical circuits in the home, including appliances, electronics, HVAC systems, and lighting.
2. High Surge Capacity: Designed to handle powerful surges from lightning strikes or utility grid fluctuations.
3. Fast Response Time: Reacts instantly to surge events, diverting harmful energy away from your home’s electrical system.
4. Compact and Discreet Design: Can be easily installed in the main electrical panel, minimizing space usage.
5. LED Indicators: Visual indicators provide clear status updates and alert homeowners to potential issues or faults.
6. Durable Construction: Built with high-quality materials to withstand harsh electrical conditions and ensure reliable protection.
7. Easy Integration: Works seamlessly with existing electrical systems without the need for extensive rewiring or modifications.
8. Compliance with Safety Standards: Meets or exceeds IEC 61643, UL 1449, and other international surge protection standards.

Advantages

1. Comprehensive Protection: Safeguards all electrical equipment within the home, from kitchen appliances to high-end electronics.
2. Protects Expensive Electronics: Prevents costly damage to sensitive devices like computers, televisions, and home theater systems.
3. Increased Home Safety: Reduces the risk of electrical fires caused by power surges or lightning strikes.
4. Low Maintenance: Requires minimal upkeep after installation, offering continuous protection with little to no maintenance needed.
5. Peace of Mind: Provides homeowners with the confidence that their electrical system and devices are protected from potential surge damage.
6. Cost-Effective: Prevents the need for expensive repairs, replacements, or insurance claims due to electrical damage.
7. Long-Term Investment: Ensures the longevity of household appliances and electronics by mitigating the risk of electrical surges.

Applications

1. Residential Homes: Ideal for protecting homes of all sizes, ensuring every electrical device is safeguarded from surges.
2. Smart Homes: Perfect for homes with smart devices, home automation systems, and IoT-enabled appliances.
3. Home Offices: Protects computers, printers, and other office equipment from sudden voltage spikes.
4. Entertainment Systems: Safeguards home theaters, gaming consoles, and audio equipment from damaging power surges.
5. Large Appliances: Protects refrigerators, HVAC systems, and washing machines from electrical damage.
6. Rural or Remote Homes: Ideal for homes in areas with unstable power grids or frequent thunderstorms.
7. Vacation Homes: Provides year-round protection, even during periods when the home is unoccupied.

Technical Data

Product Showcase

Start Your Project

We will respond to you within 24 hours after receiving your request email.

3 Years Warranty
Free Customized Design
Welcome OEM and ODM Service
CE RoHS CB KEMA TUV Certificates
Surge Protecetive Device（SPD）Factory
30+ Years Surge Protector SPD Experiences

Type	BT P BCM 150 RM/1+N	BT P BCM 230 RM/1+N	BT P BCM 275 RM/1+N	BT P BCM 320 RM/1+N	BT P BCM 385 RM/1+N
Art.-No.	801126	801205	801106	801305	801155
According to IEC 61643-11/EN 61643-11	Class I + Class II / Type 1 + Type 2
Rated voltage (max. continuous voltage) [Uc] [L-N / N-PE](50/60Hz)	150V/255V	230V/255V	275V/255V	320V/255V	385V/255V
Total lightning impulse current (10/350μs) [I_imp]	16kA(L+N-PE)	16kA(L+N-PE)	16kA(L+N-PE)	16kA(L+N-PE)	16kA(L+N-PE)
Lightning impulse current (10/350μs) [I_imp][L-N / N-PE]	8kA/20kA	8kA/20kA	8kA/20kA	8kA/20kA	8kA/20kA
Nominal discharge current (8/20μs) [In][L-N / N-PE]	25kA/40kA	25kA/40kA	25kA/40kA	25kA/40kA	25kA/40kA
Max. discharge current (8/20μs) [Imax][L-N / N-PE]	50kA/65kA	50kA/65kA	50kA/65kA	50kA/65kA	50kA/65kA
Voltage protection level at In [Up][L-N / N-PE]	≤ 1.25kV/ ≤ 1.5kV	≤ 1.35kV/ ≤ 1.5kV	≤ 1.5kV/ ≤ 1.5kV	≤ 1.65kV/≤ 1.5kV	≤ 1.8kV/≤ 1.5kV
Response time [tA][L-N / N-PE]	≤ 25ns/≤ 100ns
Max. back up fuse [F]	125A gL/gG
Operating temperature range [Tu]	-40°C…+80°C
Operating state / Failure indication	Green: ok / Red: faulty
Cross-sectional area	1.5mm² （16AWG)~25mm² (4AWG) solid / 35mm²(2AWG) flexible
Mounting on	35mm DIN rail, EN 60715
Number of remote terminals	1(or Optional)
Enclosure material	L-N(Red) +N-PE(Black）module & light gray (base) thermoplastic, UL94-V0
Dimension	2 mods (36mm wide)
Degree of Protection	IP 20
Place of installation	Indoor
Compliance	IEC 61643-11:2011 ; EN 61643-11:2012; GB/T 18802.11-2020
Certification	CE; RoHS
Type of remote signaling contact	Switching contact
Switching capacity a.c.	250V/0.5A
Switching capacity d.c.	250V/0.1A, 125V/0.2A, 75V/0.5A
Cross-sectional area for remote signaling contact	Max. 1.5mm² (16AWG) solid/flexible
