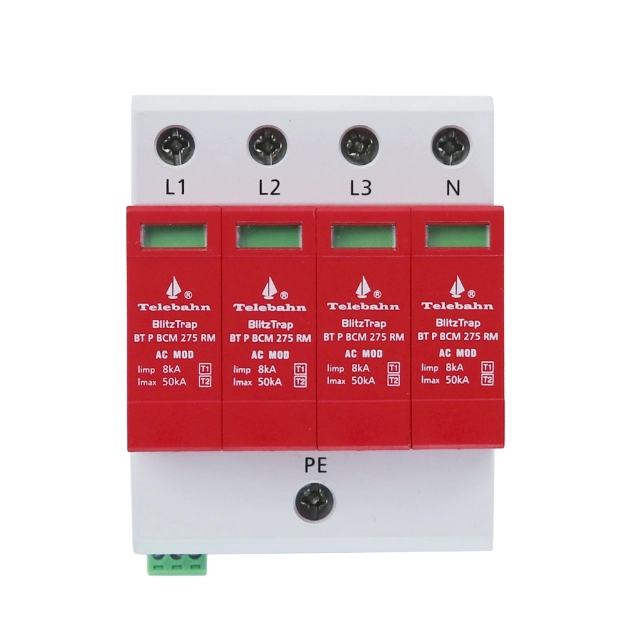

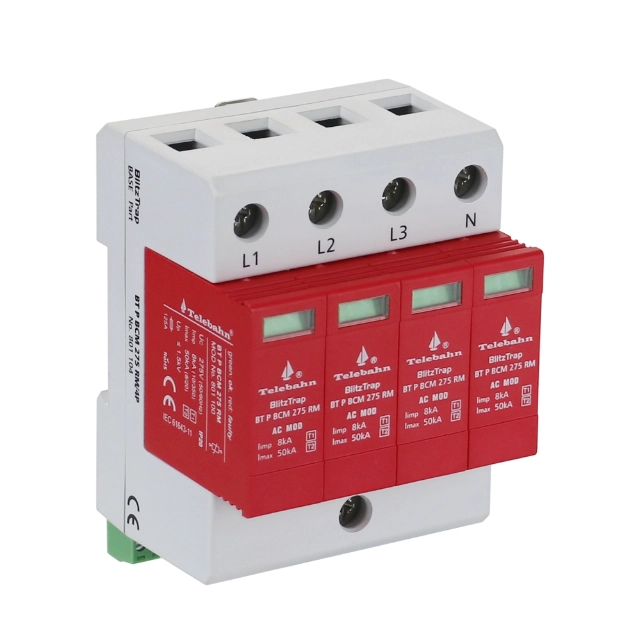

Whole Surge Protector Installation BT P BCM 275 RM/4P（801104）designed for installation in LPZ 0A-2 or higher zones, this surge protection device safeguards low-voltage equipment from power surges and remote terminal is optional. Application: Pluggable SPD Class I + Class II for three phase TN-S("4+0" circuit) various power supply systems. Compliance Standards:IEC 61643-11:2011;EN 61643-11:2012;GB/T 18802.11-2020.

Type

BT P BCM 275 RM/4P
Art.-No.

801104
Features

1. Pluggable module, easy for installation and maintenance.
2. Double thermal disconnector devices, providing more reliable protection.
3. Max. lightning discharge current up to 8kA(10/350μs)and High discharge capacity, quick response.
4. Green window will change when fault and also provide remote alarm control at the same time.
5. Mode of protection:L-PE/N-PE.
6. Suitable for TN-S installations.
7. Crafted from selected flame-retardant enclosure and Utilizing advanced European technology to ensure complete and reliable safeguarding of electrical equipment.

Inquiry

Download Datasheet

LMode of protection: L-PE/N-PE System: TN-S

Modules: 4P Uc 150V/275V/320V/385V AC

Surge Ratings: Iimp=8kA(10/350μs), In=25kA(8/20μs)

High Surge Currents: Imax=50kA(8/20μs)

Housing: Pluggable Design/Red flame retardant material
