SPD for Large-Scale Electrical Systems: Selection & Installation

Advanced T2+T3 Protection Commercial and Industrial SPD

The AC T2+T3 Surge Protective Device combines both Type 2 and Type 3 Shielding Protection Device (SPD) parts to provide large-scale electric systems with adequate protection from overvoltage transients. This device also serves as lightning protection and guards against power switching, network surges, and lightning strike disturbances.  The SPD for large-scale electrical systems serves residential, commercial, and industrial buildings with a guaranteed power supply to sensitive tools and essential infrastructure. It is designed to fit in distribution boards and is best suited for applications vulnerable to mid and low-level surge energies.

What is an SPD?

A Surge Protection Device (SPD) is an electric device created to minimize system damage incurred during transient voltage over and lightning strike voltages. These devices directly protect sensitive equipment by channeling high voltage surges through safe ground diverts.

With scales come large complexities and the possibility of severe consequences. High power surges endanger massive downtime that is likely to cripple most businesses due to high equipment replacements costs.

Why Surge Protection Matters in Large Systems?

High-capacity transformers, large spans of cabling, sensitive electronic equipment, and distributed loads are all essential features of large-scale electrical systems, which make them highly complicated.

Not having an adequate surge protector may lead to:

–       Increased downtime of other systems.

–       A compromise in safety.

–       Increased risk of equipment failure.

–       Increased costs for businesses.

–        Electrical fires may start.

SPDs are designed to lower the power quality hazards, thus preventing transient voltage incidents by providing protection for the electrical equipment and ensuring the reliability of the electrical systems.

What Makes This Different From the Others?

Unique Characteristics

Types 2 and 3 SPDs work together in providing dual-level protection. The combination of these two forms of protection provides full coverage, making this SPD a detailed full protection device. Type 2 takes care of residual currents due to direct lightning strikes or upstream protection, while Type 3 concentrates on localized equipment protection. This multi-layered approach defends against widespread equipment failures and downtime due to electrical interruptions in networks.

Fast Response Time with High Surge Discharge Capacity

This device is designed to protect sensitive electronics such as computers, network routers, and PoE-enabled devices due to its faster response time. It has better voltage protection and can withstand extreme surge discharges while maintaining low voltage levels. It also prevents signal distortion while still allowing smooth operation, thus maintaining system performance without bumps.

Compatibility & Performance

This device with 4-port RJ45, PoE+, and wall mount configuration supports IEC CAT6/CAT-6A and Class E standards. This SPD protects industrial data transmission systems and office IT infrastructure with reliable, non-intrusive interference protection.

SPD for Power Supply Systems and Renewable Energy Applications

The Power Supply System SPD goes further by integrating a wide range of surge protection technologies, including:

• AC SPD Class I and Class II

• Photovoltaic DC SPD for solar systems

• Gas discharge type AC SPD

• Wind turbine SPD

• SPD extension modules and SPD boxes

These components work collaboratively to provide a single, consolidating system for the power infrastructure, network cabling, and security systems, augmenting the dependability of the electric network in critical operational environments.

The customers also receive the surge protective monitoring devices alongside grounding accessories and devices for lightning counters, while ensuring maintenance-free, optimum surge protection.

Surge Protection for AC Units – Commercial & Industrial Application

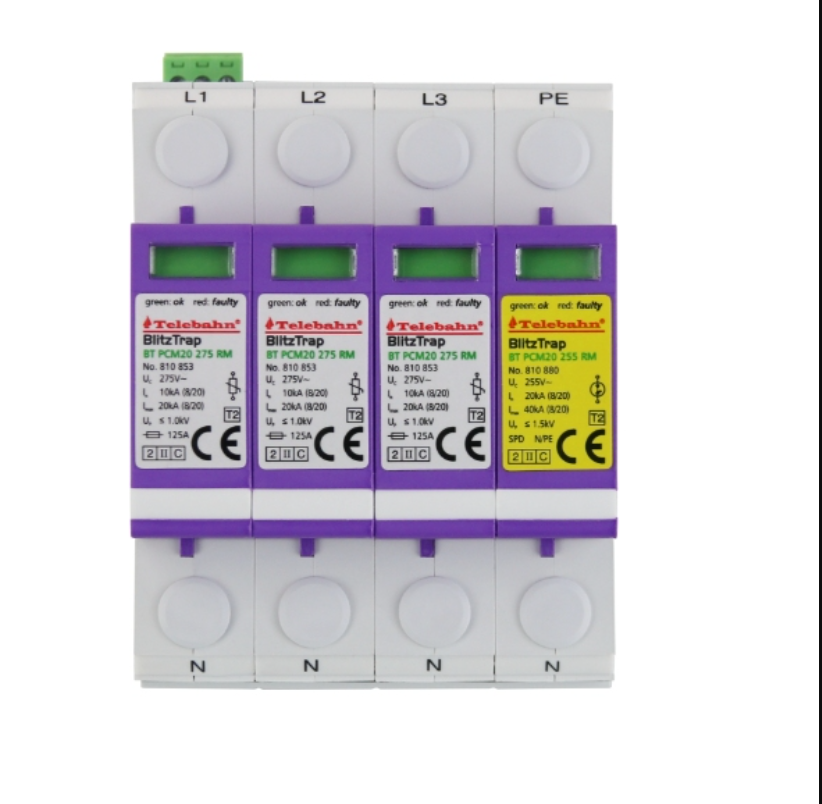

For surge protection of AC units in commercial buildings or industrial environments, models like the BT PCM20 275 RM/3+N offer tailored solutions. These devices carry the following features:

•          High surge protection with 275V Operating Voltage

•          3-Phase + Neutral Line Coverage

•          Sturdy indoor/outdoor weatherproof housing

•          Real-time indications of remaining protection status

•          Surge Protection reaction within milliseconds

It is therefore an ideal choice for protecting HVAC units, industrial compressors, and other critical equipment.

Selection of SPD for Large-Scale Electrical Systems

When choosing an SPD for large-scale electrical systems, one should pay particular attention to the unique characteristics of your system, since they will determine how the surge protection device will be integrated. With the right SPD, sensitive equipment will be protected from potential damage while ensuring the system’s reliability.

Key Suggestions

1.        Type of SPD: Select Type 1, 2, or 3 according to surge level and installation environment. Type 1 protects from direct lightning strikes. Types 2 and 3 protect from remote and open localized surge.

2.        Voltage Protection Level (Up): Choose the relevant level of voltage protection to guard the equipment against potential surges.

3.        Maximum Discharge Current (Imax): Ensure that the SPD can accommodate large discharge currents during significant surge events.

4.        Compliance: Confirm compliance with industry standards IEC 61643 or UL 1449 for compliance-based safety.

The right SPD selection improves safety, safeguards the electrical infrastructure, and decreases downtime.

How to Choose the Right SPD for Your Facility

Conduct a Facility Risk Assessment

• All surge entry locations must be marked.
• Consider surrounding elements such as lightning incidents.

Define Load Requirements

• Examine power distribution schemes.
• Identify critical loads alongside their corresponding voltage levels.

SPD Rating Matching

Place orders for devices that have a rating equal to or greater than expected surge levels.

Compliance Check

• Confirm the presence of IEC 61643 and UL 1449 specifications on the SPDs.
• Budget considerations vs safety
• Budget-friendly options are appealing, but poor quality SPDs will result in greater losses.

Contact Telebahn Surge Protection Experts for comprehensive advice on the subject.

Best Practices for Installation & Maintenance

• Proper Grounding and Bonding: Essential for effective surge diversion.

• Employ Reduced Lead Lengths: Increases in wire length increase inductance and negatively affect SPD performance.

• Routine Checkups: Scheduled off-the-clock examinations alongside analysis of overall performance.

• End-of-Life Replacement: SPDs have a certain lifespan and will require replacement after degradation. Pay special attention to their status indicators.

• Coordination of Multiple SPDs: Avoid voltage over gaps between protection layers.

Adherence to Requirements

New SPDs are required to comply with:

• Surge protective devices, IEC 61643 Series.

• UL 1449: Focuses on protection and performance within the U.S.

• IEEE C62.41: Set of rules and instructions for classifying surge environments.

You should always check that your SPD manufacturer supplies certified equipment as per legal and operational needs.

Conclusion

In protecting large infrastructures from electrical dangers, seeking certified SPDs for industry-specific needs at Telebahn minimizes risks and guarantees optimal performance. Investing in one reliable surge protective device (SPD) for a large-scale electrical system, such as the AC T2+T3 unit, will maximize system uptime and safety, in addition to operational compliance.
