Prodcuts Catalog
Surge Protector Accessories function to improve both performance and installation capabilities for surge protection systems. The set of accessories includes mounting brackets together with extension cables and grounding kits and diagnostic tools and replacement modules to provide efficient and reliable surge protection in various applications.
Impulse Counter -IC 04
IC 04
810404
1. 1.5 standard module width.
2. Inductive loop (feed through with the earthing cable of surge protective devices).
3. Powered by replaceable 3V Lithium battery, 4 digits 0-9999, with set and reset function.
4. 1m long inductive twisted pair.
5. Press the buttton “BATTERY" continuously， if daiplay ”HI“， it means the battery power is adequate， if display ”LO“， it means the battery power is inadequate， the battery should be replaced.
Surge Counter
Surge Event Counter -IC 03
IC 03
810400
1. 1.5 standard module width.
2. Inductive loop (feed through with the earthing cable of surge protective devices).
3. Powered by replaceable 3V Lithium battery, 3 digits 0-999, with set and reset function.
4. 1m long inductive twisted pair.
5. Press the buttton “BATTERY" continuously， if daiplay ”HI“， it means the battery power is adequate， if display ”LO“， it means the battery power is inadequate， the battery should be replaced.
Surge Counter
Surge Counter Device-IC 06
IC 06
810406
1. 3 standard module width.
2. Inductive loop （feed through with the earthing line of surge protective devie）
3. 4 digits LCD display， with set and reset function.
4. RS485 remote communication function.
5. 1m long inductive twisted pair.
Surge Counter
Lightning Strike Counter -IC 05
IC 05
810405
Surge Counter

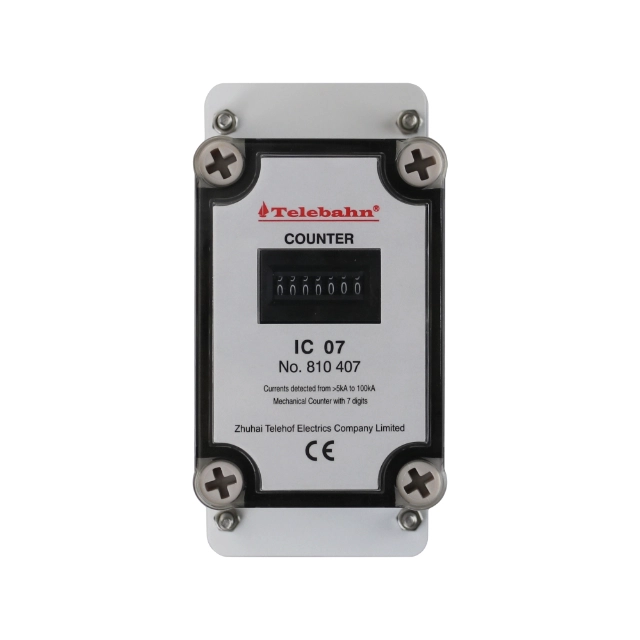

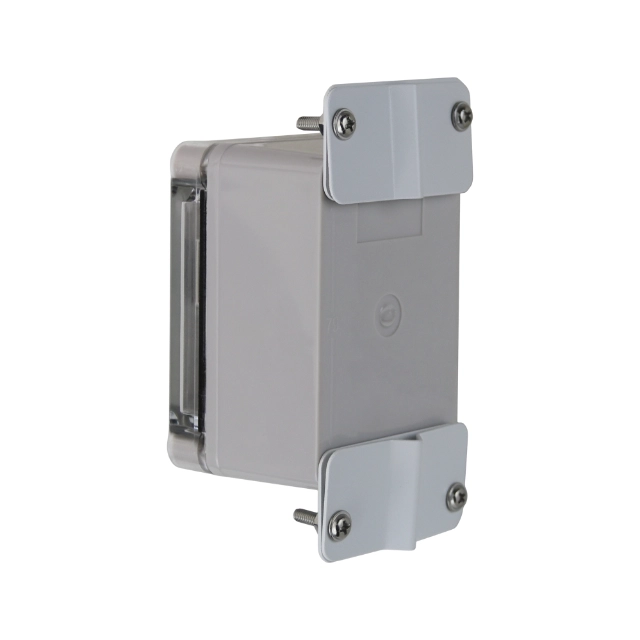

Lightning Counter -IC 07
IC 07
810407
1. Produced according to IP65 for outdoor used.
2. Serial counter non-reset table.
3. Mechanical Counter with 7 digits(0-9999999).
4. Easy mountable.
5. Currents detected from 5kA to 100kA .
6. Mechanical counter, does not require any external power supply.
Surge Counter
Electrical Surge Arrest -ISG 10 S
ISG 10 S
690001
Earthing Devices
Surge Protector Accessories
The functionality along with reliability and safety of surge protection systems depend on essential add-ons named Surge Protector Accessories. The necessary components for effective surge protection installation consist of grounding devices together with mounting kits and connection tools that secure infrastructure and maximize operational output.
Protection
Designed for computer data transmission and network systems, ensuring reliable performance.
Discharge Capacity
High discharge capacity with low voltage protection, safeguarding sensitive equipment.
Performance
Fast response, superior discharge capacity, and minimal signal attenuation for optimal operation.
Compatibility
Complies with IEC CAT6 (CAT-6A) or Class E standards, 4-port RJ45, wall mount, PoE+ support.
