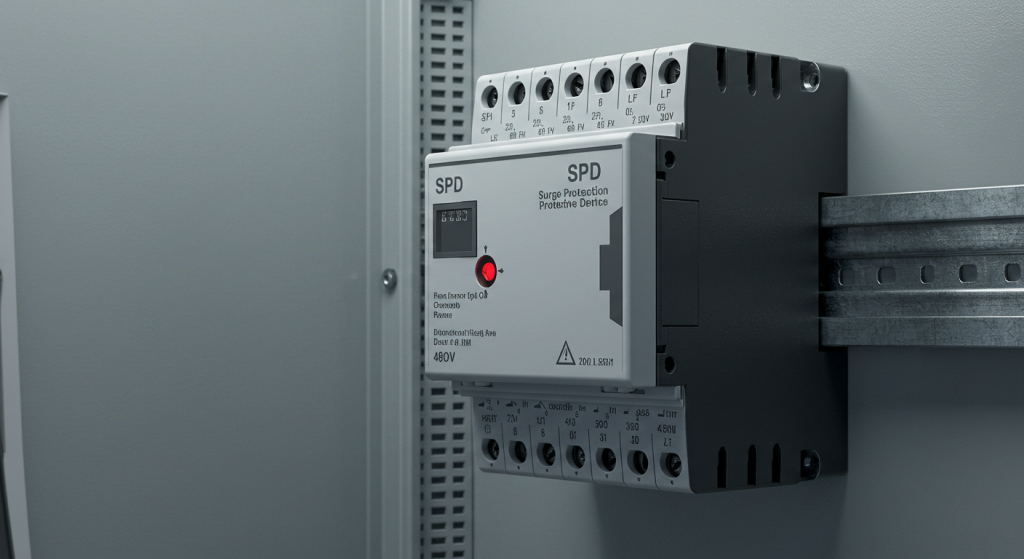

Wind Turbine SPD 480V-750V – Complete Surge Protection Guide

Wind Turbine SPD 480V 750V – Critical Wind Energy Surge Protection

A wind turbine SPD 480V-750V is an essential tool that guards the wind turbine system against electrical surges and voltage spikes, as well as lightning. These transients may permanently damage delicate equipment such as inverters, controllers, and communication systems, resulting in significant downtimes and the subsequent replacement/repair costs. Placed in strategic positions like the nacelle, tower, and control cabinet, this surge protection gadget maintains the turbines running, increasing the reliability of the entire system.

1. Surge Capacity

Designed to accept direct lightning strokes, as well as large transient overvoltages which are typical of wind turbine-oriented conditions.

2. Summary Protection Class I II

Combines the lightning and switching surge protection features of Type 1 and Type 2 SPDs, with the added protection of arc and fire and fire suppression.

3. Multi-System Compatibility

Appropriate where low-voltage power lines, control or signal lines are used in wind turbines.

4 Rugged Environment Resistant

Rugged construction with high thermal characteristics guarantees that operation is stable even in the harshest weather conditions and high-altitude areas.

5. Pluggable Design with a Modular Approach

Makes it easy to be installed, inspected, and replaced without having to shut down the whole turbine system.

6. Support of Remote Signaling

The optionality of the contacts allows connecting them to the SCADA or alarm systems; thus, real-time monitoring of SPD status is possible.

7. Status Bar Displayers

They are also fitted with LEDs that give fast diagnostics and maintenance indication due to the use of built-in LEDs, which indicate the operating status.

8. Standards Compliance

Complies fully with IEC 61400-24, IEC 61643- 11 other world wind energy protection standards.

Benefits of Deploying the Wind Turbine SPD 480V-750V

1. Protects High Value Parts

Shield generators, converters, controllers, and communication lines from lightning, surges, protecting necessary turbines.

2. Ensures Turbine Up Time

Reduces the line losses due to the electrical disturbances as the energy production and the availability of the system are maintained.

3. Extends the Life of the Equipment

Less wear on electrical component pins exposed to frequent surges extends the life of electrical components.

4. Withstands Extreme Environment

The SPD has been designed to perform in extreme outdoor and high-altitude conditions because of its reliable ability to work in extreme weather and variations in temperatures.

5. Cuts Costs of Maintenance

Reduces expensive replacement or repairs of wind turbine systems that are caused by lightning events and voltage spikes.

6. Integrated Monitoring Options

Allows remote signaling to detect faults and perform preventive maintenance in real-time, and increase operational efficiency.

Uses of Wind Turbine SPD 480V-750v

1. Wind turbine Nacelles

Controllable by units, inverters, and pitch systems placed at the top of the turbine.

2. Timer Base Panels

Protects the power distribution units and communication interfaces against lightning and surges.

3. Detector and Converter Systems

Prevents interference caused to the system by transients of high energy on the power grid.

4. CADA and Monitoring Equipment

Shields prevent data line surges and overvoltage on its remote control and monitor systems.

5. Blade and Hub Sensors

It prevents corrosion of sensors and other electronic components that are subjected to severe environmental factors.

Leading Manufacturers and Products -RJ45 CAT6 SPD Protectors

Several reputable manufacturers offer reliable RJ45 CAT6 SPD protection that ensures adequate protection against surges on the network. Of them, the Surge Protector with RJ45 Protection – BS RJ45G 48 D(A) is a premier example of protection methods applied to Ethernet- and PoE-based devices. This SPD, manufactured and designed by Telebahn, is capable of providing stable network performance protection against any voltage spikes and lightning surges to the routers, switches, IP cameras, and VoIP phones.

Main Features and Strengths:

• 3 Years Warranty – Guarantees durability, customer satisfaction in the long run.
• Free Customized Design- Very specific solutions that suit the network very well.
• OEM, ODM Welcome– Greater flexibility in manufacturing according to specific business requirements.
• High Quality – CE, RoHS, CB, KEMA, and TUV certificates are an assurance of high quality.
• Factory Direct SPD Production – Experienced surge protective device manufacturer.

BS RJ45G 48 D (A) protector of Telebahn takes compact design, plug-and-play installation, and full-mode protection features, and this makes it fit in residential, commercial, and industrial networks. Telebahn, a company with decades of experience and a certified provider of in-line SPD, is known to provide solutions to new Ethernet systems in terms of robustness and high performance.

Technical Specifications

Among the technical characteristics of Wind Turbine SPD 480V-750V, the following should be taken into consideration:

• Nominal Voltage (Un): The nominal operating voltage of the system, usually 480V or 600V.
• Maximum Continuous Operating Voltage (Uc): The highest voltage the SPD can withstand without degradation, and many times is often rated 600V or 750V.
• Surge Capacity (Imax): The maximum surge current that the device can survive with proper and quality SPDs up to 100kA.
• Nominal Discharge Current (In): The current that is considered to be the standard surge current that the SPD is designed to withstand and is usually rated at 25 kA.
• Protection Modes: Dynamic Line to Neutral (L-N), Line to Ground (L-G), and Neutral to Ground (N-G) protection.

Conclusion:

Adding a wind turbine SPD 480V-750V to your wind power is a preemptive measure to ensure that you have protection against electrical surges, as well as assure the reliability and the life of your equipment. By learning how surge protection is essential, paying attention to technical specifications, following international standards, as well the best industry practices, you can protect your investment and help the renewable energy industry grow steadily. For additional information on surge protection solutions, please visit Telebahn Surge Protection Devices.
